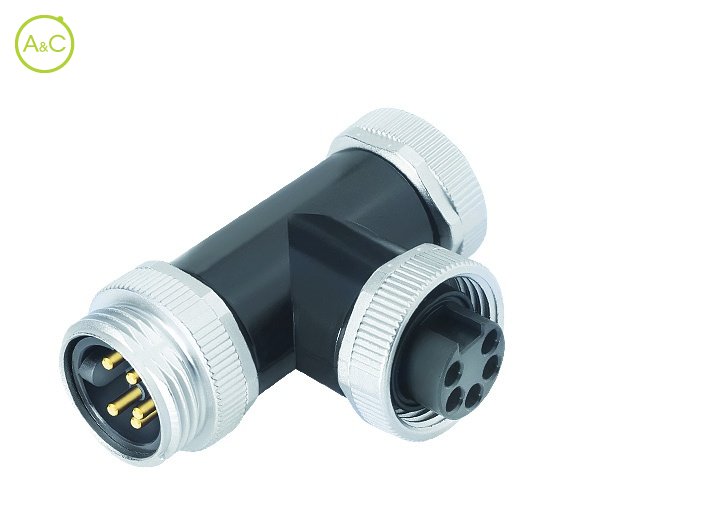

Splitter, pin 7/8", pin/socket 7/8"

Number Of Poles

  • 3
  • 4
  • 5
Article Number 09 2473 100 03

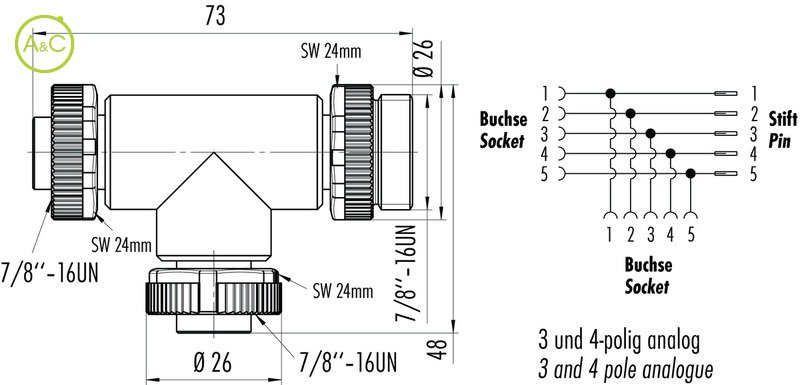

Connector Diameter 26 mm
Number Of Contacts 3 contacts
Connector Locking System Screw (7/8"-16 UN)
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 300
Rated Impuls Voltage 4000 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 10 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PUR (UL 94 HB)
Material Of Housing Macromelt / brass nickel plated
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
