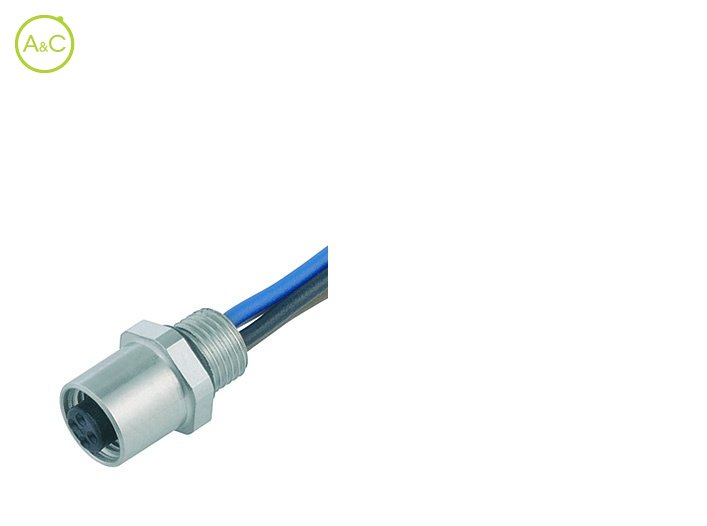

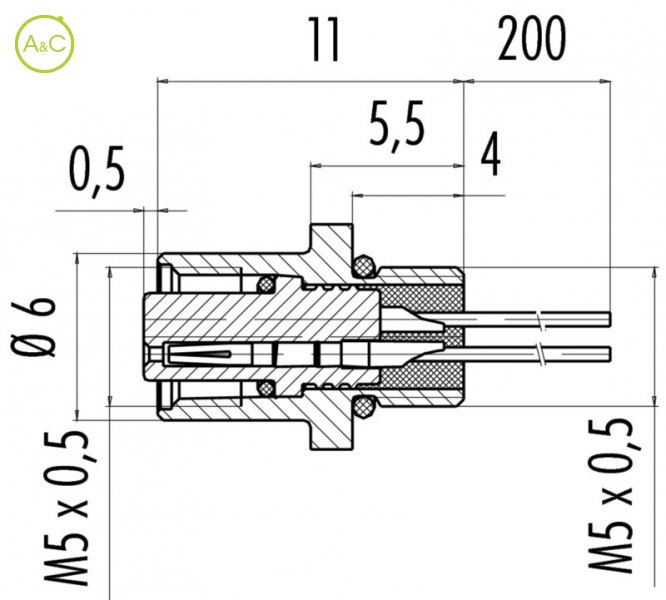

Female panel mount connector

  • With single wires

Number Of Poles

  • 3
  • 4
Article Number 09 3106 00 03 09 3106 01 03
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M5) Screw (M5)
Termination Assembled with single wires Assembled with single wires
Wire Section 0.14 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +80 °C +80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group I I
Rated Current (40°) 1 A 1 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing CuZn (Brass nickel plated) CuZn (Brass nickel plated)
Cable Diameter 3,1 mm 3,7 mm
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
