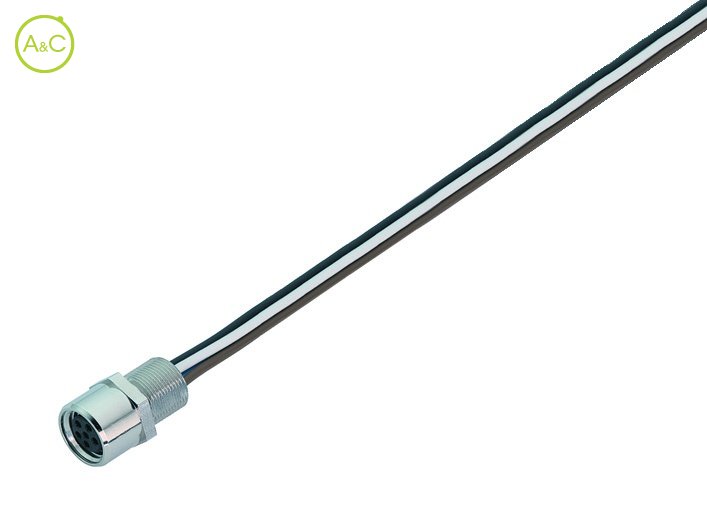

Female panel mount connector

  • With single wires
  • UL-approval

Number Of Poles

  • 3
  • 4
  • 6
  • 8
Article Number 09 3412 00 03
Connector Diameter 11.5 mm
Number Of Contacts 3 contacts
Connector Locking System Screw (M8)
Termination Single wires 0,25 mm
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
