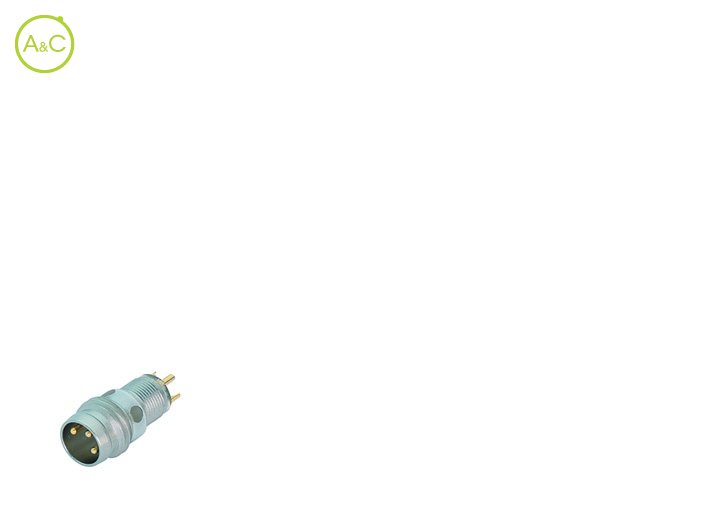

Male receptacle

  • Combi version

Number Of Poles

  • 3
  • 3 + LED (red)
  • 3 + LED (yellow)
  • 4
  • 4 + LED (red)
  • 4 + LED (yellow)
Article Number 09 3413 00 03

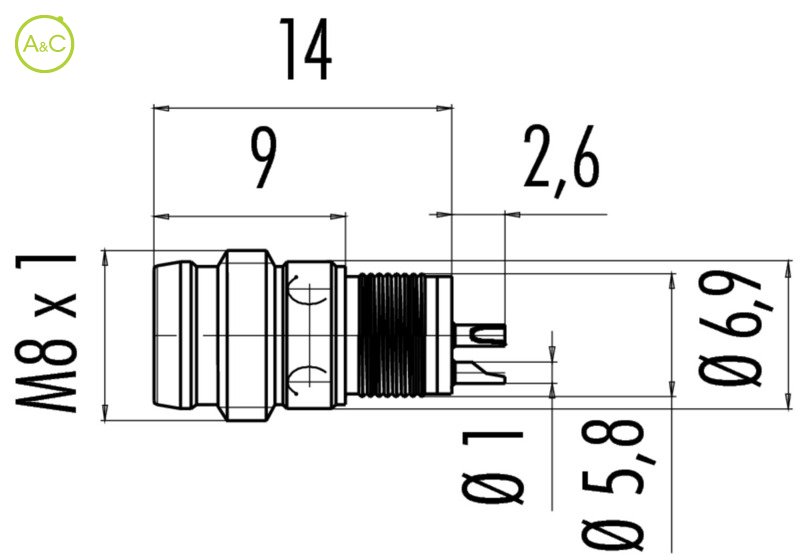

Connector Diameter 6.9 mm
Number Of Contacts 3 contacts
Connector Locking System Screw, snap-in
Termination Solder
Wire Section 0.25 mm²
Protection Degree Snap-in IP65, Screw IP67
Mating Cycles Snap-in >50, Screw >100 times
Upper Temperature Snap-in +70, Screw +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
