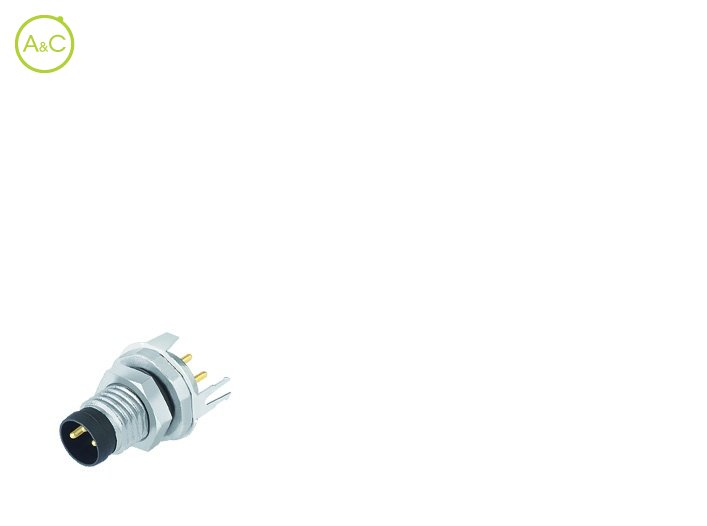

Male panel mount connector

  • Front fastened, with shielding sheet

Number Of Poles

  • 3
  • 4
  • 5
  • 6
  • 8
Article Number 09 3419 81 03

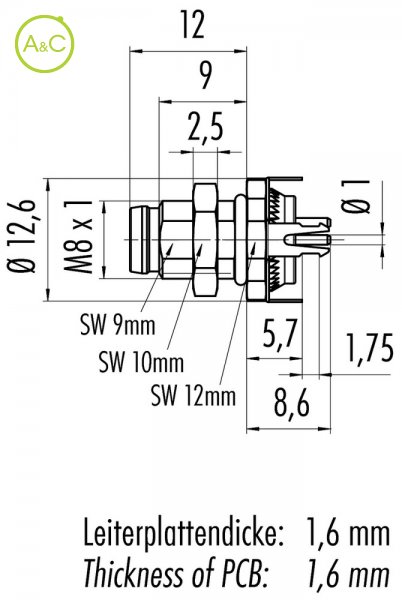

Connector Diameter 12.6 mm
Number Of Contacts 3 contacts
Connector Locking System Screw, snap-in
Termination Dip solder
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing Zinc diecasting nickel plated
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
