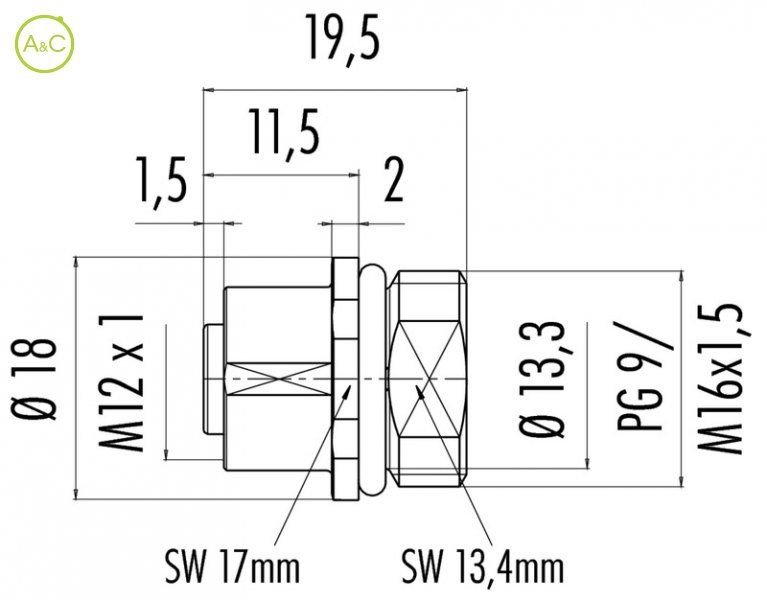

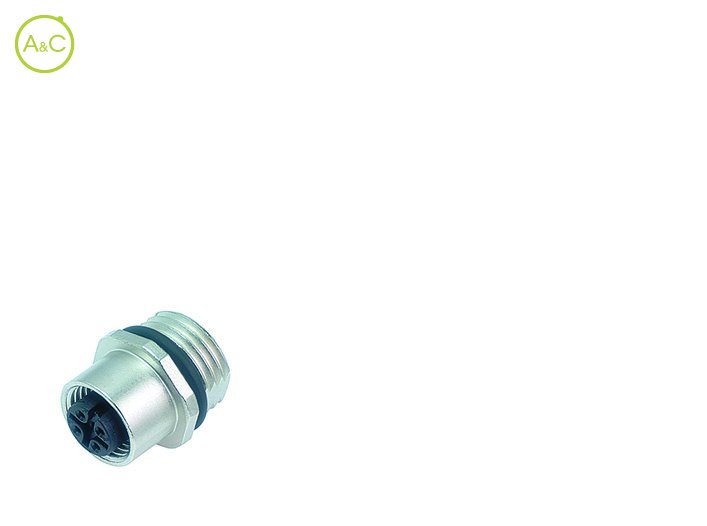

Female panel mount connector

  • Solder, PG9/M16 x 1,5

Number Of Poles

  • 4
  • 5
  • 8
Article Number 86 0132 0002 00004 86 0232 0002 00004
Old Article Number 09 3432 77 04 09 3432 578 04
Connector Diameter 13.3 mm 13.3 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Solder Solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP68 IP68
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
