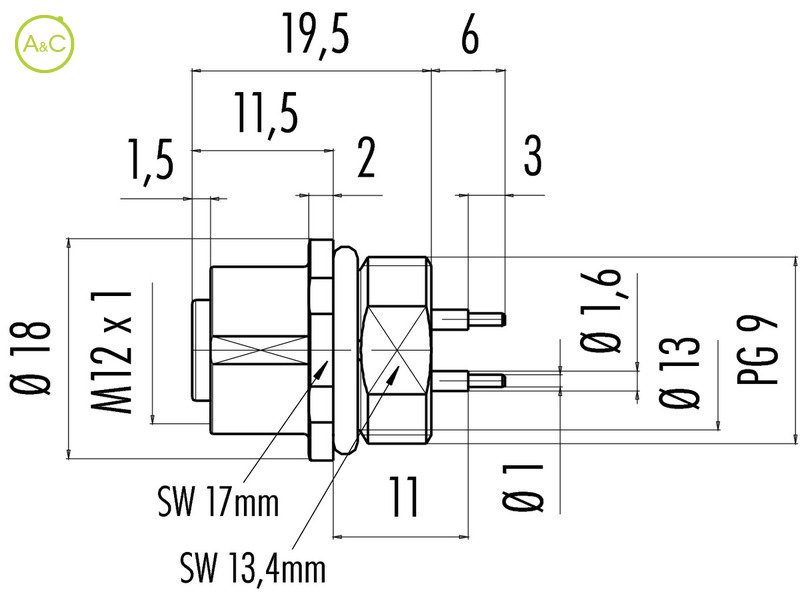

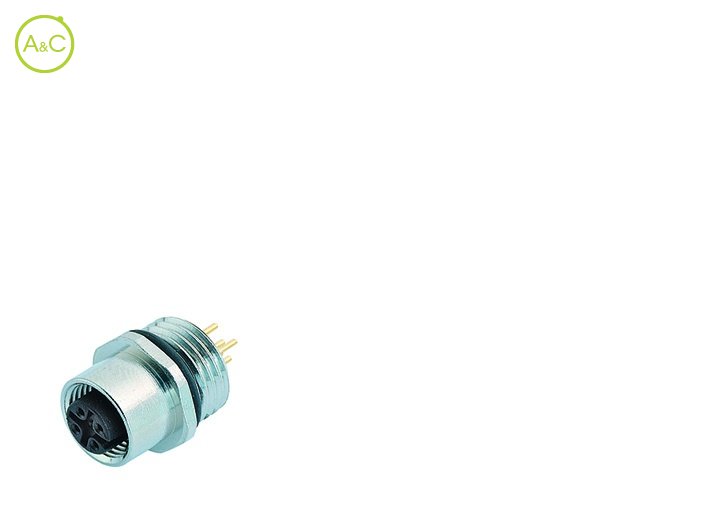

Female panel mount connector

  • Dip solder
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number 86 0132 0000 00004 86 0232 0000 00004
Old Article Number 09 3432 88 04
Connector Diameter 18 mm 18 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Dip solder Dip solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP68 IP68
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated
Fixing Thread PG9 PG9
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
