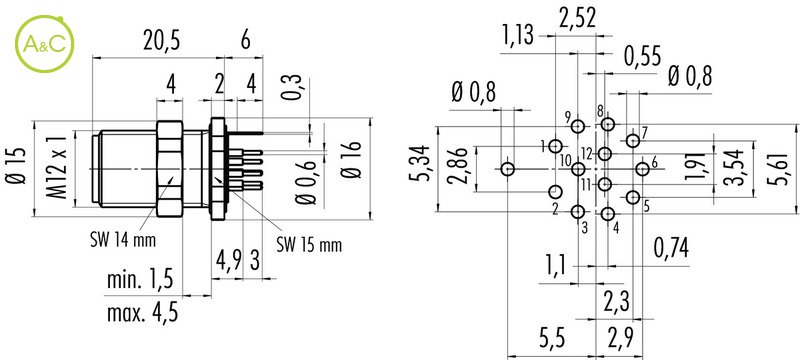

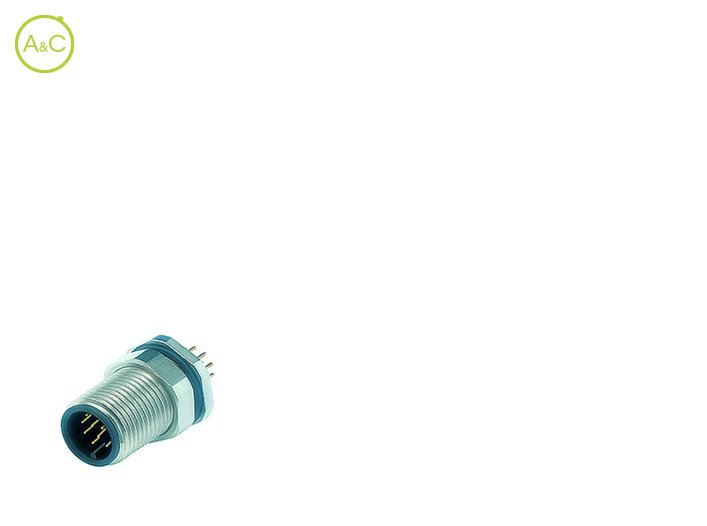

Male panel mount connector

Front fastened, dip solder, 8 mm contact length

09-3491-969-12

09-3491-969-12

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

12
12 (with shielding sheet)

Article Number	09 3491 969 12
Connector Diameter	16 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated
Fixing Thread	M12 x 1
Product sheet	Download product sheet

Article Number	09 3491 970 12
Connector Diameter	16 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated
Fixing Thread	M12 x 1
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
