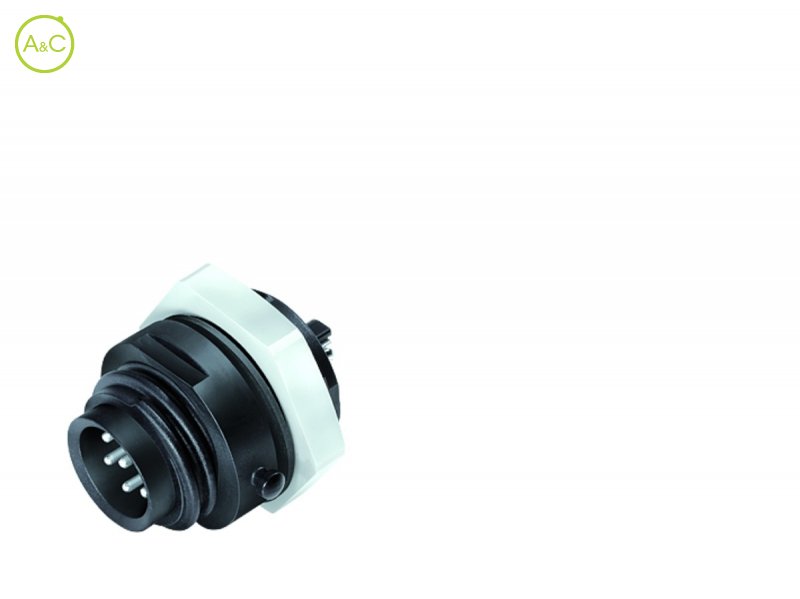

Male panel mount connector

  • 6+PE, central locking, screw clamp connection
  • UL-approval

Number Of Poles

  • 6+PE
Article Number 09 4219 150 07

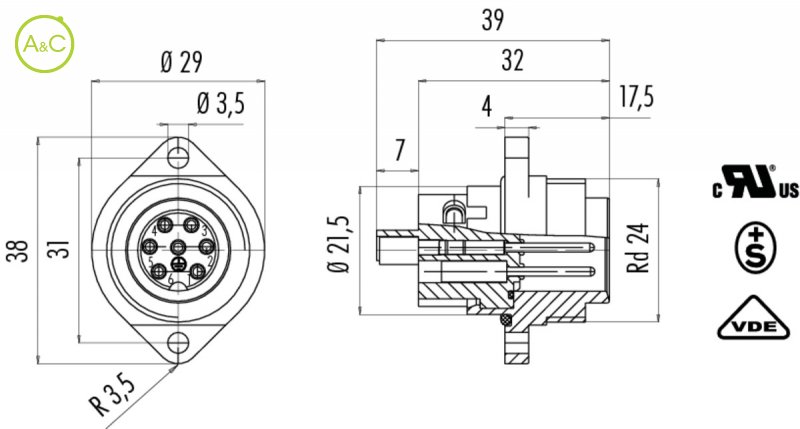

Connector Diameter 29 mm
Number Of Contacts 6+PE contacts
Connector Locking System Screw (RD24)
Termination Screw
Wire Section 1,5 - 2,5 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 4000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 10 (8A UL) A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Plating Ag (Silver)
Material Of Insert PBT
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
