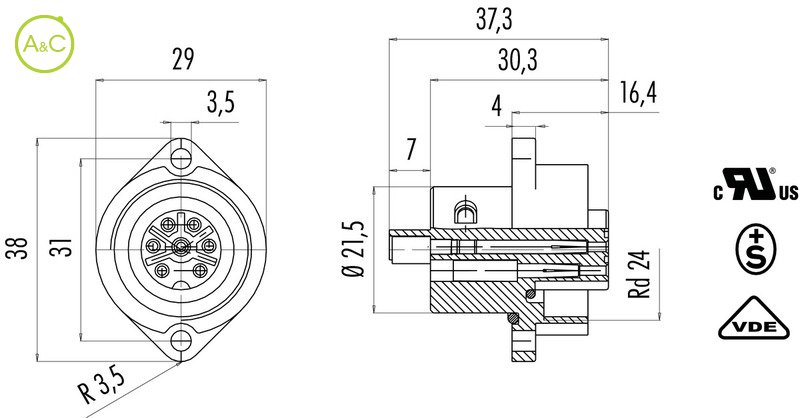

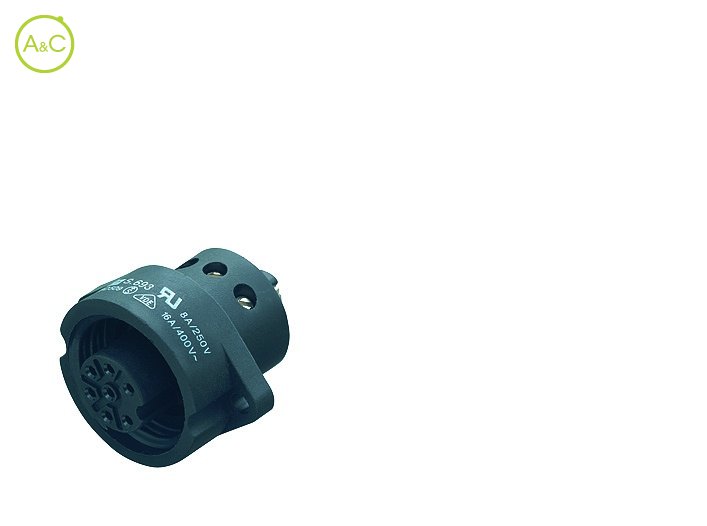

Female panel mount connector

  • 6+PE, screw termination with VDE-, SEV-, UL-approval

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Number Of Poles

  • 6+PE
Article Number 09 4220 00 07
Connector Diameter 21.5 mm
Number Of Contacts 6+PE contacts
Connector Locking System Screw (RD24)
Termination Screw
Wire Section 0,34 - 1,5 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 4000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 10 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Ag (Silver)
Material Of Insert PBT
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
