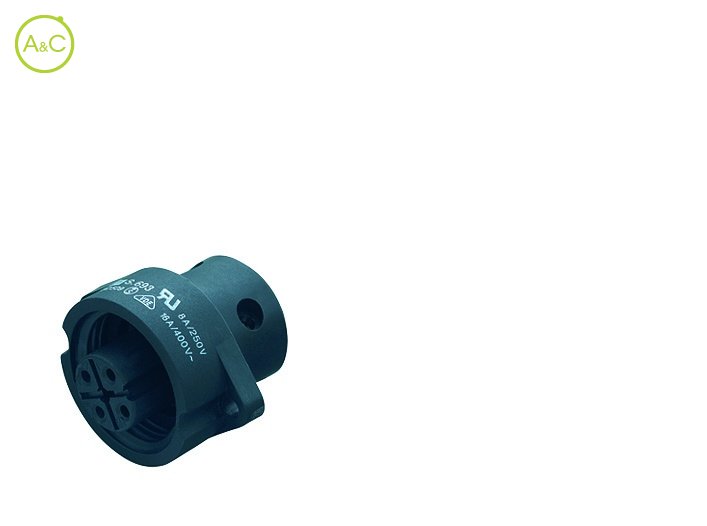

Female panel mount connector

  • 3+PE, screw termination with VDE-, SEV-, UL-approval

Number Of Poles

  • 3+PE
Article Number 09 4224 00 04
Connector Diameter 21.5 mm
Number Of Contacts 3+PE contacts
Connector Locking System Screw (RD24)
Termination Screw
Wire Section 0,5 - 2,5 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 400
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 16 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Plating Ag (Silver)
Material Of Insert PBT
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
