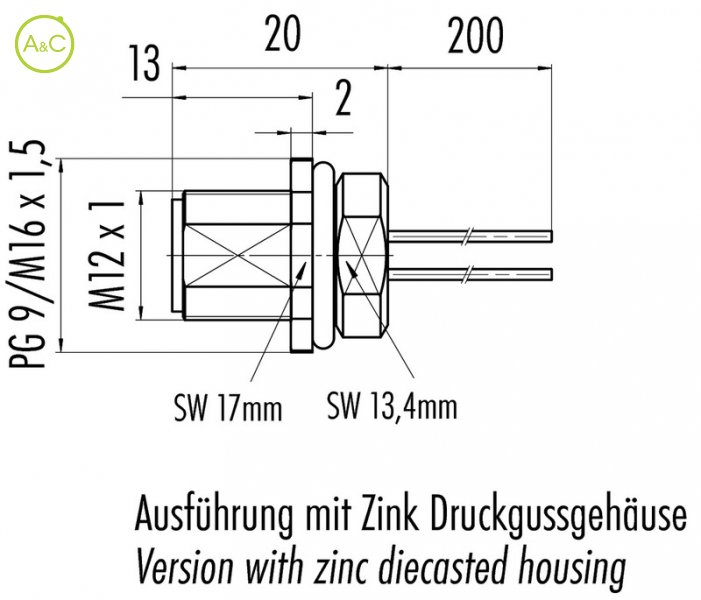

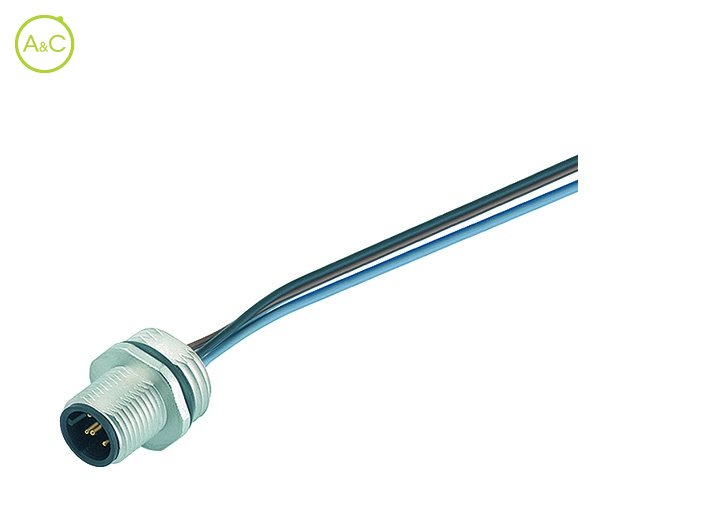

Male socket

  • With single wires, 0,25mm²

Number Of Poles

  • 4
  • 5
Article Number 09 4431 00 04 09 4431 700 04 09 4431 282 04
Connector Diameter 13 mm 13 mm 13 mm
Number Of Contacts 4 contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-B) Screw (M12-B) Screw (M12-B)
Termination Single wires Single wires Single wires
Wire Section 0.25 mm² 0.25 mm² 0.25 mm²
Protection Degree IP68 IP68 IP68
Mating Cycles >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 250 250 250
Rated Impuls Voltage 2500 V 2500 V 2500 V
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PA PA PA
Material Of Housing Zinc diecasting nickel plated, stainless steel 1.4404 Zinc diecasting nickel plated, stainless steel 1.4404 Zinc diecasting nickel plated, stainless steel 1.4404
Product sheet Download product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
