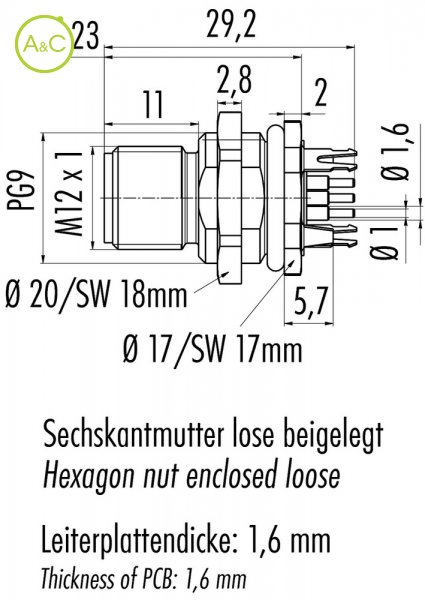

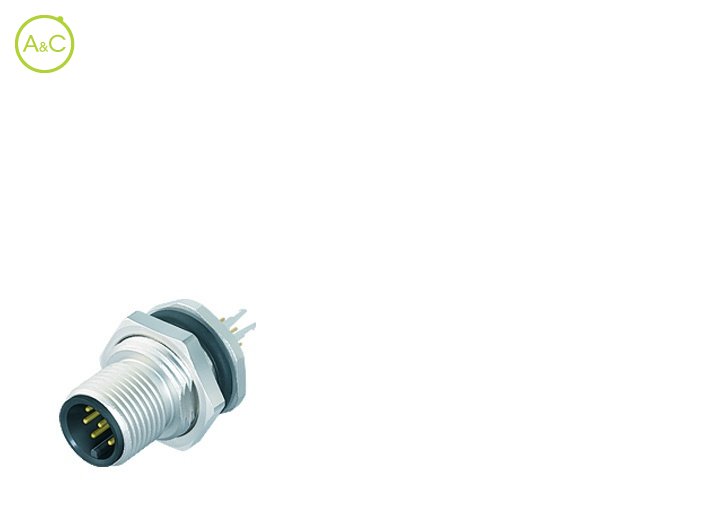

Male panel mount connector

  • Front fastened, with shielding sheet, dip solder

Number Of Poles

  • 5
Article Number 09 4441 500 05
Connector Diameter 20 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-B)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze) / shielding sheet
Plating Sn (Tin) / shielding sheet
Material Of Insert PA
Material Of Housing Brass nickel plated
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
