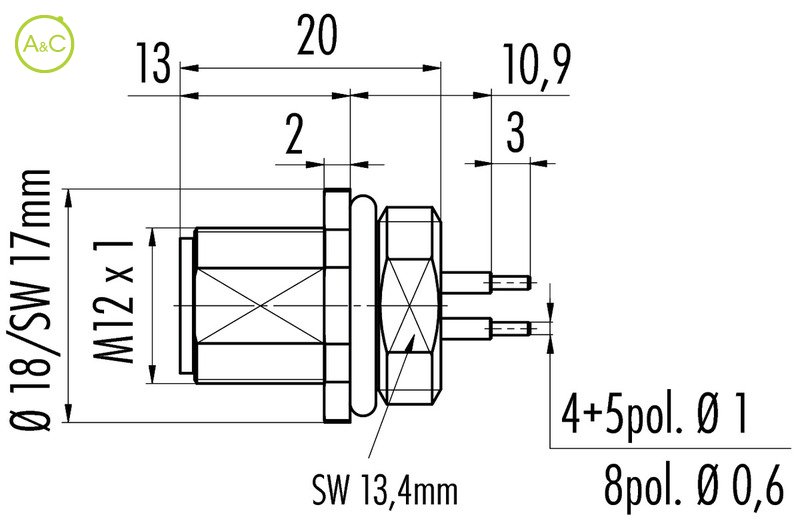

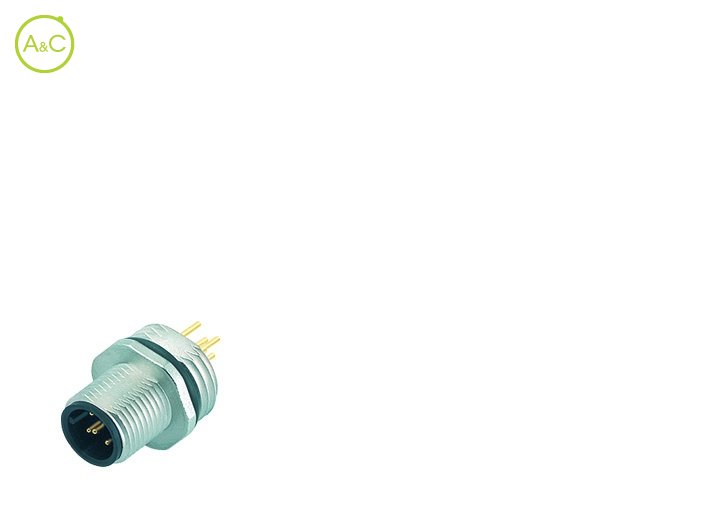

Male panel mount connector

  • Dip solder

Number Of Poles

  • 5
Article Number 09 4445 88 05
Connector Diameter 18 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-B)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass / Zinc diecasting nickel plated
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
