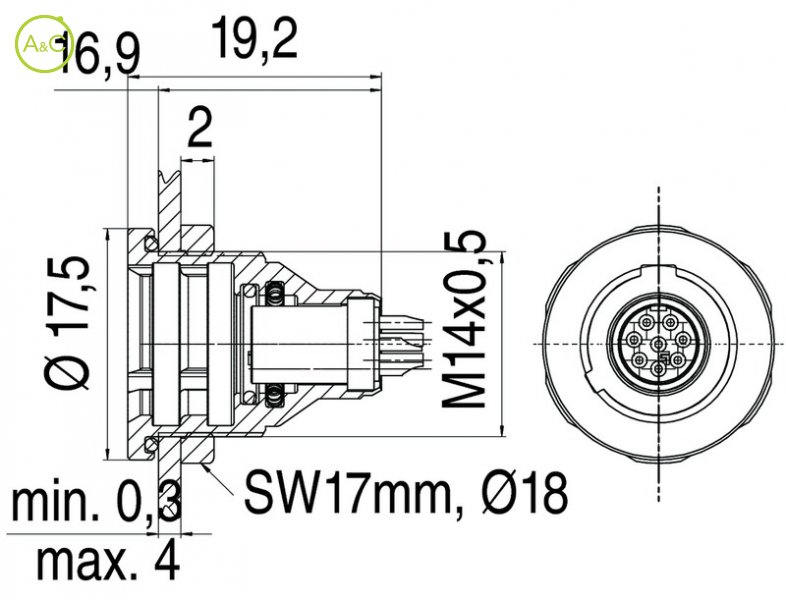

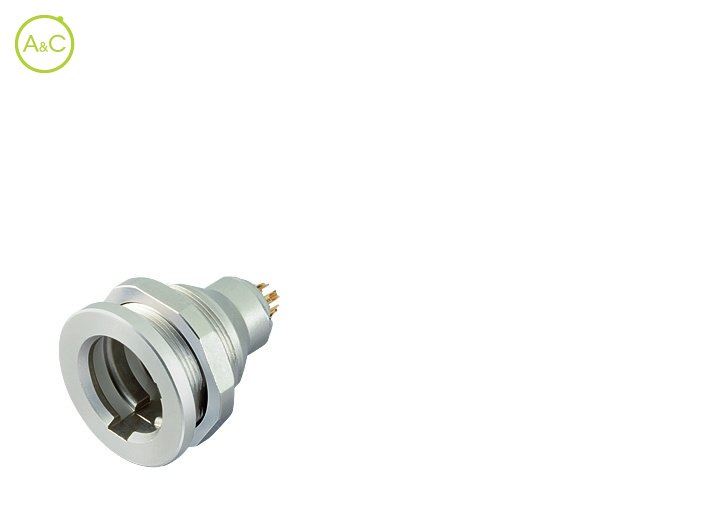

Female panel mount connector

IP67, shielded

09-4908-00-03

09-4908-00-03

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

3
4
5
7
8

Article Number	09 4908 00 03
Connector Diameter	17.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	09 4912 00 04
Connector Diameter	17.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	3 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	09 4916 00 05
Connector Diameter	17.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	3 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	09 4928 00 07
Connector Diameter	17.5 mm
Number Of Contacts	7 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	09 4932 00 08
Connector Diameter	17.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
