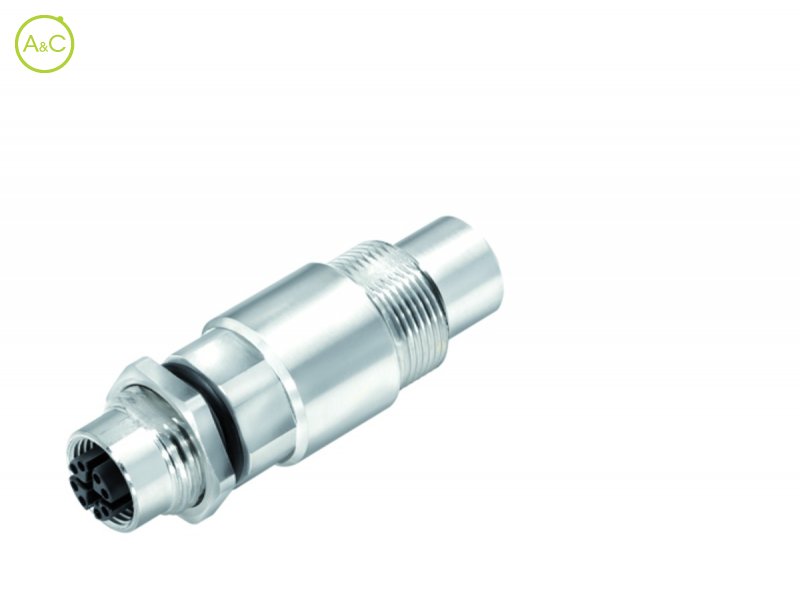

Adapter, lead through for control cabinet

  • female-female, shielded
  • UL-approval

Number Of Poles

  • 8
Article Number 09 5286 00 08
Connector Diameter 21 mm
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-X)
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 50 V AC 60 V DC
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Product sheet Download product sheet
