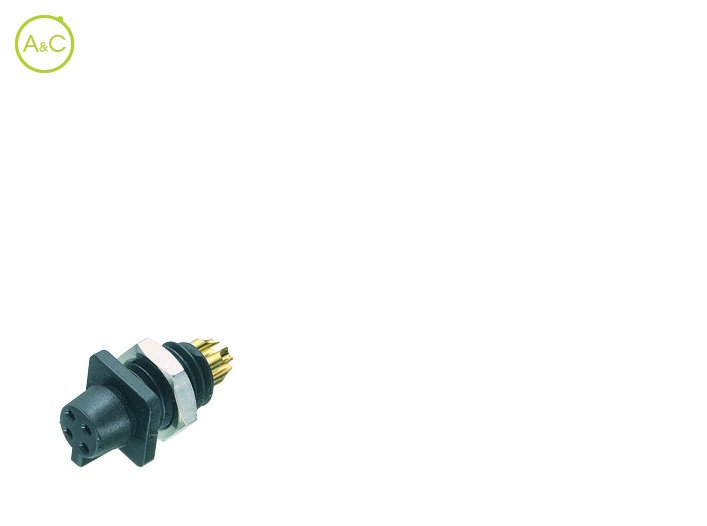

Female panel mount connector

  • With solder termination

Number Of Poles

  • 3
  • 4
  • 5
Article Number 09 9750 30 03

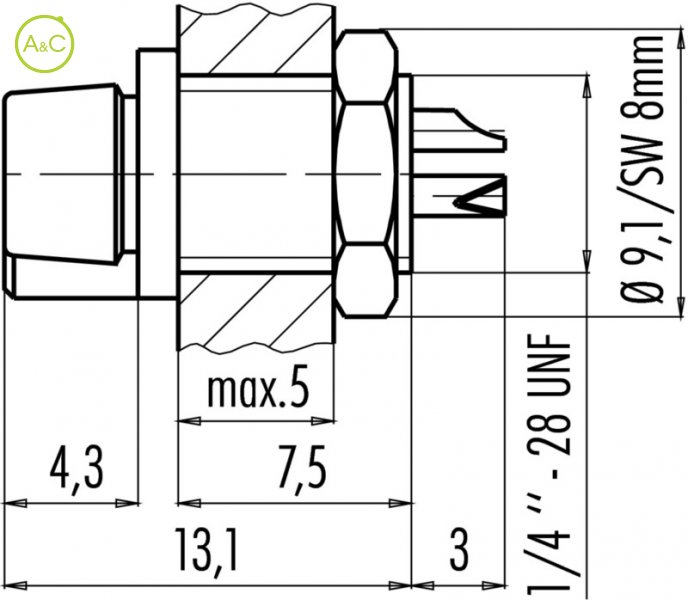

Connector Diameter 8 mm
Number Of Contacts 3 contacts
Connector Locking System Snap-in
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP40
Mating Cycles >100 times
Upper Temperature +70 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 3 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
