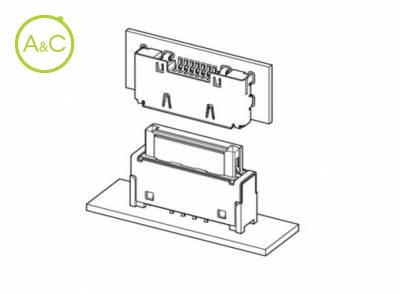

Receptacle CRK Connector

  • CRK CONNECTOR
Download product sheet

Number Of Poles

  • 9
Article Number 09RSA-CRK-GE
Number Of Contacts 9
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.8mm Pitch Board to Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.80 mm
Rated Current (ac/dc) Signl/0.5 Power/2 A
Rated Voltage (ac/dc) Signl/30 Power/30 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten
This connector is the ultra small connector with the shutter for cradles. This is suitable for using to the cradle of mobile equipments such as mobile phone, PDA and so on. Long life design High-speed transmission (For USB2.0) Signal line & Power supply line (Signal 7 circuits + Power supply 2 circuits) Space saving design RoHS Compliant
