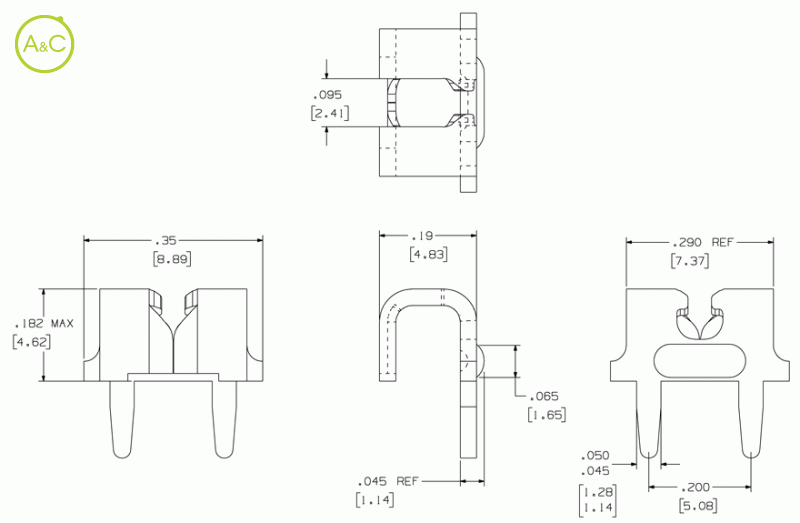

IDC (Insulation Displacement Connector) For #24-18 AWG Wire

  • 20 amperes
  • General
Article Number 1039
Packaging Loose
Extra Description 20 amperes
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 20 Amperes
Applicator System Loose: WTP-4ALL
Mounting Type Outward or Inward Splay 0.062" (1.57mm) thick PCB
Mounting Hole Diameter 2 holes 0.058" ±0.003" (1.47mm ±0.076) on 0.200" (5.08mm) centers
Wire Gauge Range #24-18 AWG
Pieces Per Reel (loose Part No.) NA
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
