Test Point Terminals

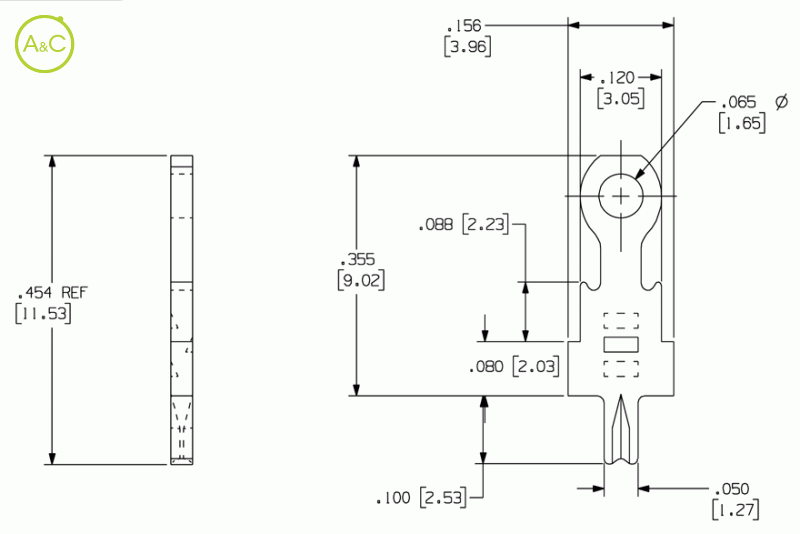

  • Terminal height is 11,53 mm

Packaging

  • Loose
  • Reeled
Article Number 1058 1059
Extra Description Terminal height is 11,53 mm Terminal height is 11,53 mm
Material Thickness / Type 0.020" (0.51mm) C26000 Brass 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating 10 Amperes 10 Amperes
Applicator System Loose: ZPT81-TP Reeled: Model 9700, 9700 XY Loose: ZPT81-TP Reeled: Model 9700, 9700 XY
Mounting Type Split Leg Splay Split Leg Splay
Mounting Hole Diameter 0.046" ±0.003" (1.17mm ±0.076) 0.052" ±0.003" (1.32mm ±0.076)
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (reeled Part No.) / /
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
