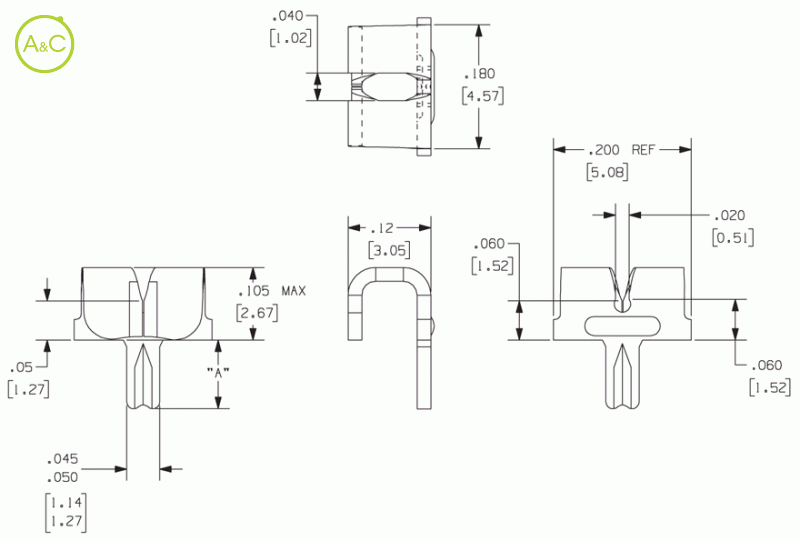

IDC (Insulation Displacement Connector) For #30-26 AWG Wire

  • with single hole

Packaging

  • Loose
  • Reeled
Article Number 1182 1183
Extra Description with single hole with single hole
Dim A 0.070" (1.78mm) 0.100" (2.54mm)
Material Thickness / Type 0.020" (0.51mm) C26000 Brass 0.020" (0.51mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating 10 Amperes 10 Amperes
Applicator System Loose: WTP-4ALL Reeled: Model 9700, 9700 XY Wire Termination: Consult factory. Loose: WTP-4ALL Reeled: Model 9700, 9700 XY Wire Termination: Consult factory.
Mounting Type Split Leg Splay for 0.031" (0.79mm) thick PCB Split Leg Splay for 0.062" (1.57mm) thick PCB
Mounting Hole Diameter Single Hole 0.055" ±0.003" (1.40mm ±0.076mm) Single Hole 0.055" ±0.003" (1.40mm ±0.076mm)
Wire Gauge Range #30-26 AWG #30-26 AWG
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (reeled Part No.) / /
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
