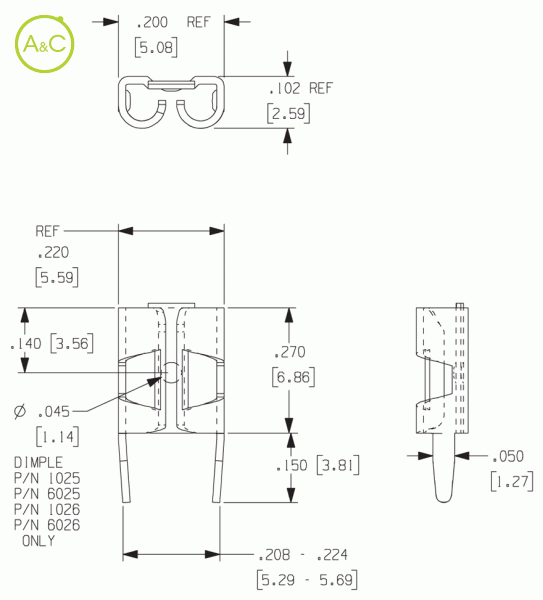

0.187" (4.75mm) Tab Receptacles

Packaging

  • Loose
  • Reeled
Article Number 1241 1026 1025
Mating Terminal Size 0.187" x 0.015" (4.75mm x 0.38mm) Tab 0.187" x 0.020" (4.75mm x 0.51mm) Tab 0.187" x 0.032" (4.75mm x 0.81mm) Tab
Material Thickness / Type 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper 100% Tin over Copper
Current Rating 15 Amperes 15 Amperes 15 Amperes
Applicator System Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type Outward or Inward Splay Outward or Inward Splay Outward or Inward Splay
Mounting Hole Diameter 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers
Resistance Rating 10mOhm Max 10mOhm Max 10mOhm Max
Temperature Rating -65° to 85°C -65° to 85°C -65° to 85°C
Pieces Per Reel (loose Part No.) NA NA NA
Pieces Per Reel (reeled Part No.) / / /
Product sheet Download product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
