SMT Insulation Displacement Connectors

  • AWG 18-26

Packaging

  • Loose
  • Small reeled
  • Taped
Article Number 1245 1296
Extra Description AWG 18-26 AWG 18-26

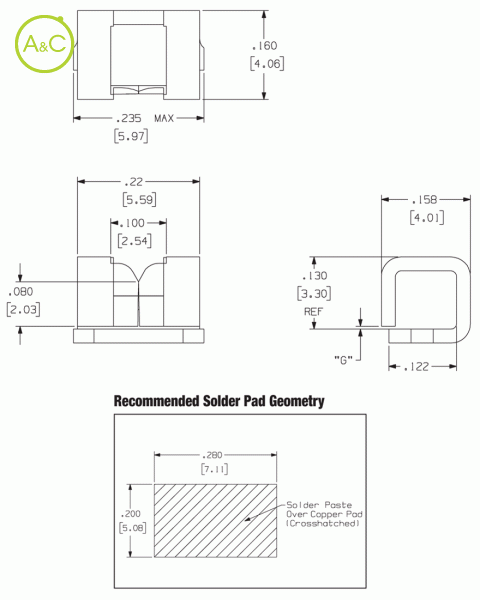

Gap Dimension “g” 0.005" (0.13mm) 0.005 - 0.013" (0.13 - 0.33mm)
Material Thickness / Type 0.025" (0.64mm) C26000 Brass 0.025" (0.64mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating Ul AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 10 amperes AWG 20 solid & stranded 12 amperes AWG 18 stranded 13 amperes AWG 18 solid 13 amperes AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 10 amperes AWG 20 solid & stranded 12 amperes AWG 18 stranded 13 amperes AWG 18 solid 13 amperes
Current Rating C-ul AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 8 amperes AWG 20 solid & stranded 10 amperes AWG 18 stranded 11 amperes AWG 18 solid 12 amperes AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 8 amperes AWG 20 solid & stranded 10 amperes AWG 18 stranded 11 amperes AWG 18 solid 12 amperes
Feeder System Standard 12mm Tape Feeder Standard 12mm Tape Feeder
Ul File Number E361770 E361770
Wire Gauge Range #18-26 AWG #18-26 AWG
Wire Insertion Tool WTP-4ALL: Prototype Tool WTPPS-1208-1: Pnuematic Production Tool WTP-4ALL: Prototype Tool WTPPS-1208-1: Pnuematic Production Tool
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (taped Part No.) / /
Pieces Per Reel (small Reel Part No.) / /
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
