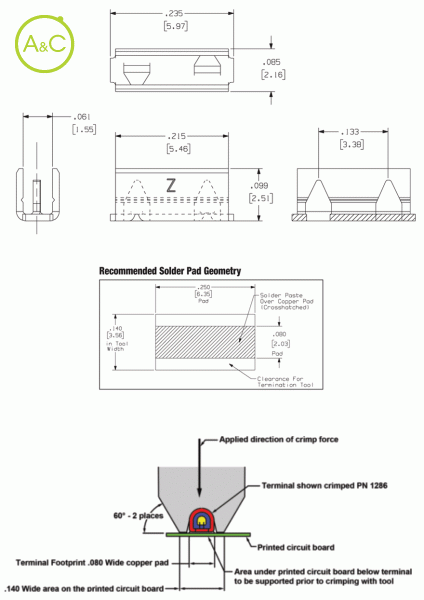

SMT Insulation Piercing Connectors

  • AWG 20-22

Packaging

  • Loose
  • Small reeled
  • Taped
Article Number 1295
Extra Description AWG 20-22
Material Thickness / Type 0.012" (0.30mm) C26000 Brass
Standard Finish Pre-finished 100% Matte Tin over Copper. Edges will be bare.
Current Rating Ul 6.5 amperes
Current Rating C-ul 6.5 amperes
Feeder System Standard 16mm Tape Feeder for PN 1295T
Ul File Number E361770
Crimping System Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1295-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter 20 AWG: 0.045"/0.050"/0.061" 22 AWG: 0.053"/0.058"
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (taped Part No.) /
Pieces Per Reel (small Reel Part No.) /
Product sheet Download product sheet
