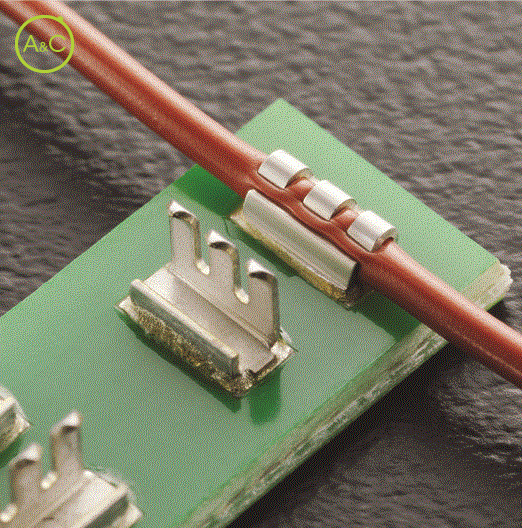

SMT Insulation Piercing Connectors

  • AWG 24

Packaging

  • Loose
  • Taped

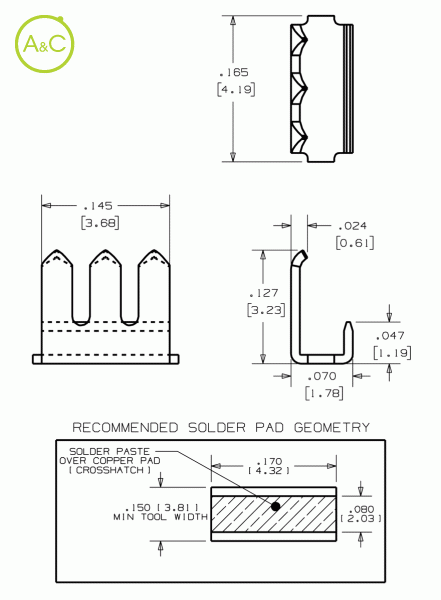

Article Number 1307
Material Thickness / Type 0.010" (0,254 mm) C26000 Brass
Standard Finish Pre-finished 100% Matte Tin over Copper. Edges will be bare. (16)
Current Rating Ul 3.5 amperes
Current Rating C-ul 3.5 amperes
Feeder System Standard 16mm tape Feeder for PN 1307T
Ul File Number E361770
Crimping System Mini press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1307-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter AWG 24: .045 in. (nominal)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
