Top Entry Type Plug With Boss

  • JUX CONNECTOR
Download product sheet

Number Of Poles

  • 140
Article Number 140P-JUXK-G-B 140P-JUXK-G-B-T
Number Of Contacts 140 140
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 0.6mm Pitch Board-to-Board Connector 0.6mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 0.60 mm 0.60 mm
Rated Current (ac/dc) 0.5 A 0.5 A
Rated Voltage (ac/dc) 50 V 50 V
Pcb Mount Style Surface Mount Technology (SMT) Surface Mount Technology (SMT)
Remark Without suction tape With suction tape
Eigenschappen verschillen tussen varianten en subvarianten

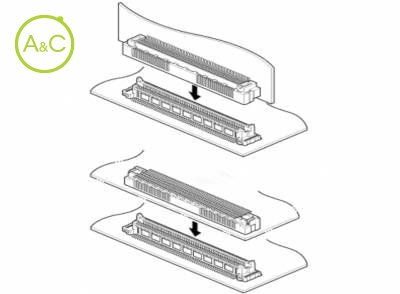

This connector is a small 0.6mm pitch double-row board-to-board connector for high density mounting. This plug is available in top and side entry type to choose either connection type depending on its usage. With guide system for mating Outstanding click feeling when mating Space saving Vertical and horizontal mounting RoHS Compliant
