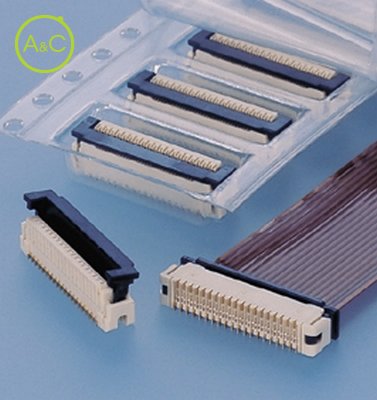

Female Connector for FXZT Connector

  • FXZT CONNECTOR
Download product sheet

Number Of Poles

  • 17
  • 21
  • 23
  • 25
  • 27
  • 31
  • 33
  • 39
  • 45
  • 51
Article Number 17FXZT-SM1-GAN-TF
Number Of Contacts 17
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.3mm Pitch ZIF Connector for FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.30 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Eigenschappen verschillen tussen varianten en subvarianten

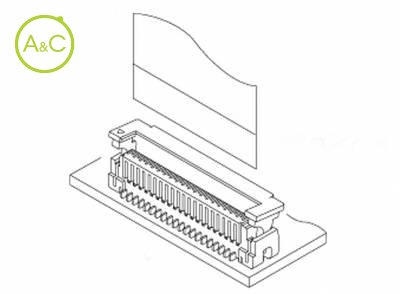

Vertical 0.3mm (.012") pitch ZIF type connector. This connector was mainly developed to connect FPC and subminiature digital products such as DVC, DSC, PDAs and so on. Vertical ZIF type FPC connector Space saving 0.3mm (.012") pitch ZIF type connector for FPC realizes space saving for mounting area. Adoption of slider structure In general flip-lock structure in side entry type, lock might be released during routing of FPC, thus slider structure suitable for vertical ZIF type connector has been adopted. Standards UL Recognized E60389 RoHS Compliant
