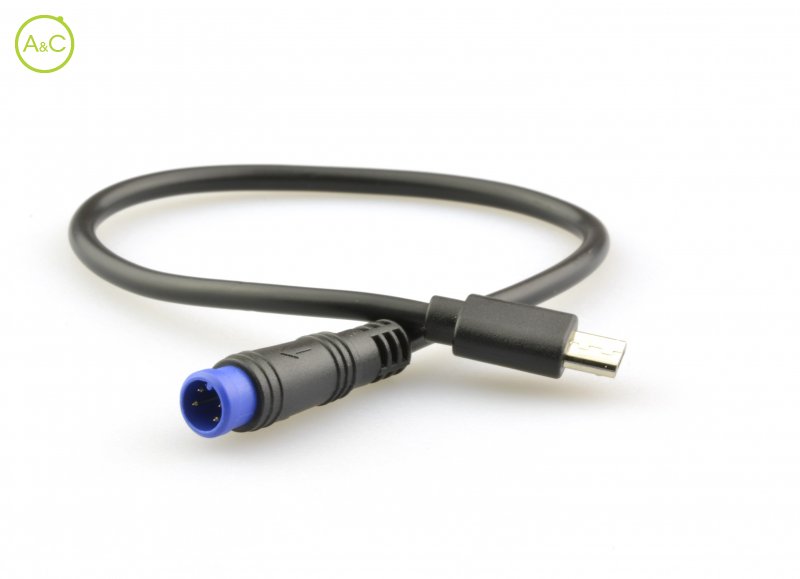

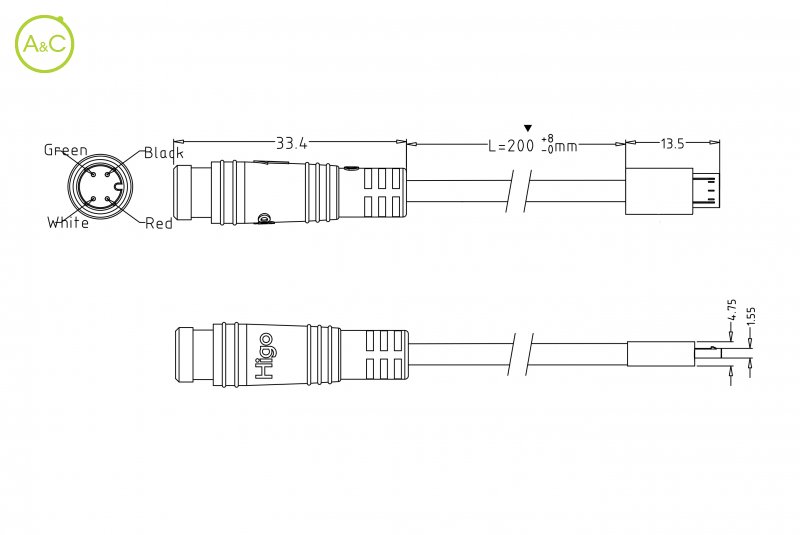

4P Mini B to micro USB charging cable

Download product sheet

Number Of Poles

  • 4
Article Number 5300.1000
Color Blue
Connector Diameter 9 mm
Cable Length 200 mm
Protection Degree IP66
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Remark Specs above are related to the Mini B connector Other cable length/type on request
Rated Current 4 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Eigenschappen verschillen tussen varianten en subvarianten
