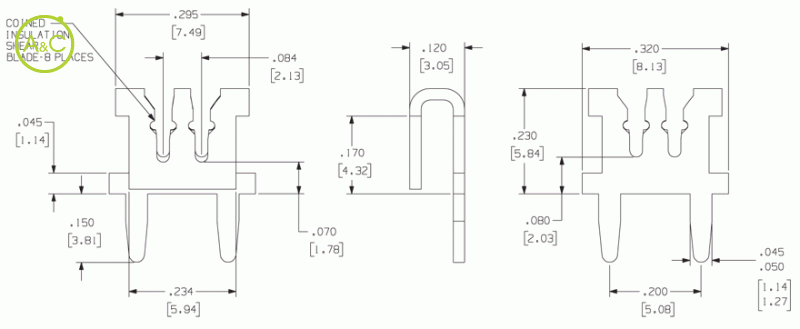

IDC For #19-18 AWG Magnet Wire

  • General
Article Number 6072
Packaging Reeled
Material Thickness / Type 0.025" (0.64mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 15 Amperes
Applicator System Reeled: Model 9700, 9700 XY Wire Termination: Consult factory.
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 2 holes 0.058" ±0.003" (1.47mm ±0.076mm) on 0.200" (5.08mm) centers
Wire Gauge Range #19-18 AWG Magnet Wire
Pieces Per Reel (reeled Part No.) 7000
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
