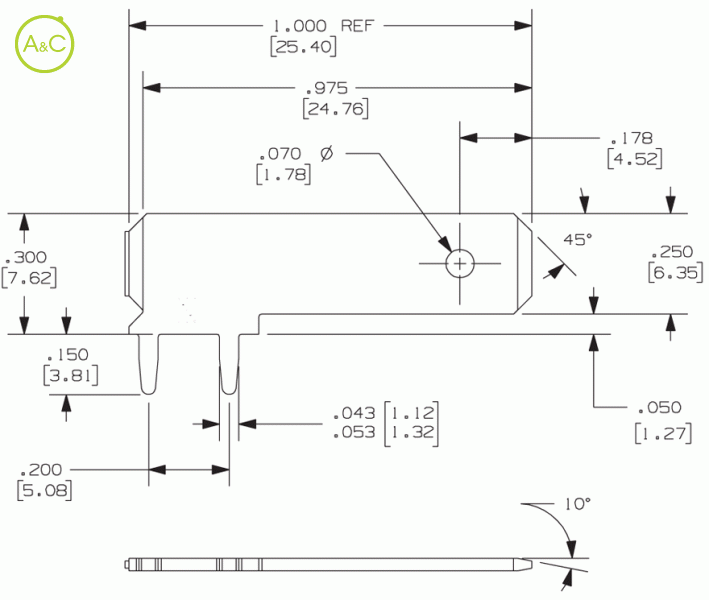

0.250" (6.35mm) Right Angle Tabs / Quick Disconnect Terminals

  • Tab length is 25,40 mm

Hole

  • 0.070" (1.78mm) hole
  • No hole
Article Number 6080
Packaging Reeled
Extra Description Tab length is 25,40 mm
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating /
Current Rating Ul 20 Amperes
Current Rating C-ul 20 Amperes
Ul File Number E146208
Applicator System Model 9700, 9700 XY
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.47mm ±0.076mm)
Feature 'a' 0.070" (1.78mm) HOLE
Pieces Per Reel (reeled Part No.) 5500
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
