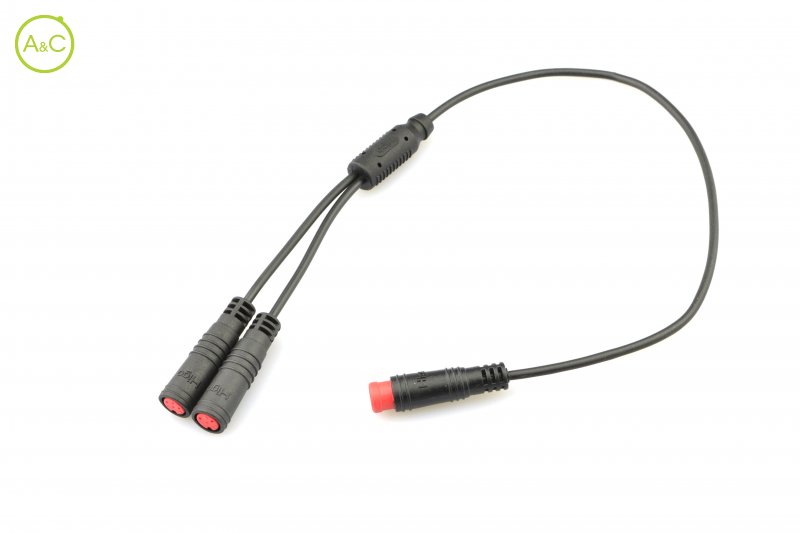

Parallel Y,2 female/1male,2P,50-1200mm,TPUØ2,4mm

Download product sheet Download step file

Number Of Poles

  • 2
Article Number 6300.0015
Color Red
Connector Diameter 9 mm
Wire Section 0.14 mm²
Protection Degree IP66
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 2.4 mm
Insulation Wire Teflon
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 62 mm
Material Jacket TPU
Eigenschappen verschillen tussen varianten en subvarianten
