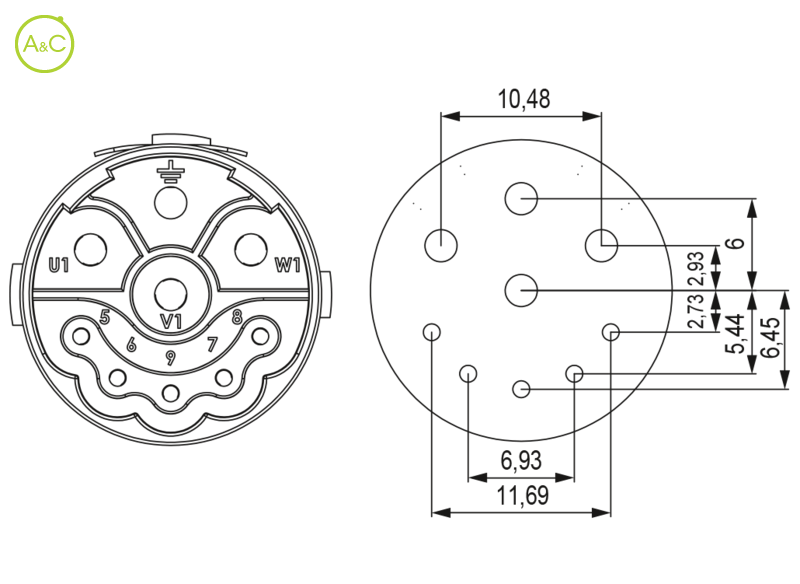

Inserts 9-pole

  • Pins
Download product sheet
  • General
Number Of Contacts 9
Mating Cycles >1000 times
Upper Temperature +125 °C
Lower Temperature -40 °C
Material Thermoplastic Polyamid PA 6/Fire protection class V-0
Required Crimp Contacts

"5 x 1 mm: 7.010.941.001 (0,14 - 1 mm²), 7.010.941.021 (0,75 - 1,5 mm²), 7.010.941.022 (0,75 - 1,5 mm²) & 4 x 2 mm: 7.010.942.001 (0,75 - 2,5 mm²), 7.010.942.011 (2,5 - 4 mm²)"

Contact Diameter (a) 1
Contact Diameter (b) 2
Wire Section (a) 0,14-1,5 mm²
Wire Section (b) 0,75-4 mm²
Nominal Current (a) 10 A
Nominal Current (b) 28 A
Nominal Voltage (degree Of Pollution 3) (a) 250 V ~
Nominal Voltage (degree Of Pollution 3) (b) 630 V ~
Test Voltage (a) 2500 V ~
Test Voltage (b) 4000 V ~
Insulation Resistance > 1013 MΩ
Max. Contact Resistance (a) 3 MΩ
Max. Contact Resistance (b) 3 MΩ
Eigenschappen verschillen tussen varianten en subvarianten
