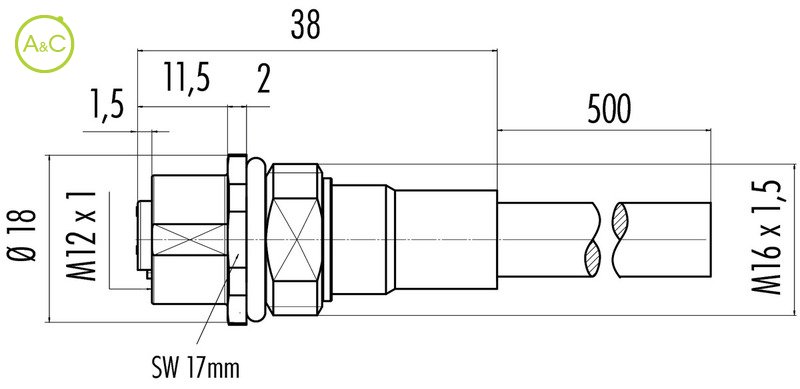

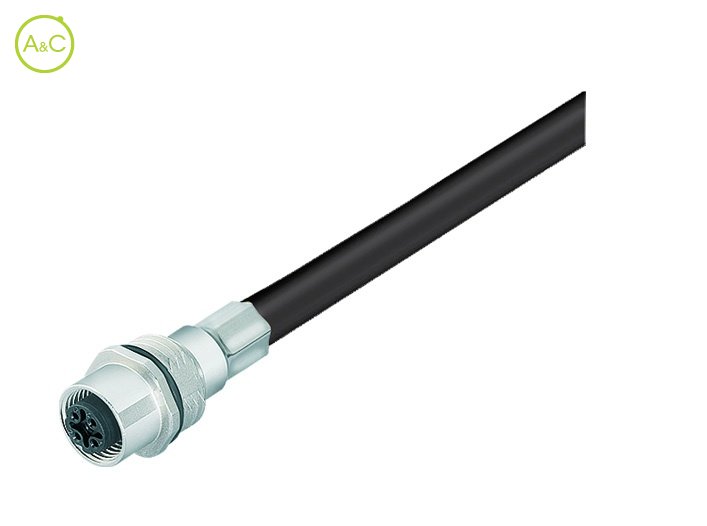

Female panel mount connector

  • M16, with shielded PUR cable

Number Of Poles

  • 5
  • 8
Article Number 70 3442 785 05
Connector Diameter 18 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-A)
Termination PUR-cable
Wire Section 0.25 mm²
Cable Length 0.5 mm
Protection Degree IP68*
Mating Cycles >100 times
Upper Temperature 70 °C
Lower Temperature -5 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass/zinc diecasting nickel plated
Cable Diameter 5,3 mm
Fixing Thread M16 x 1,5
Remark * *When built-in, connected and locked with counterpart
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
