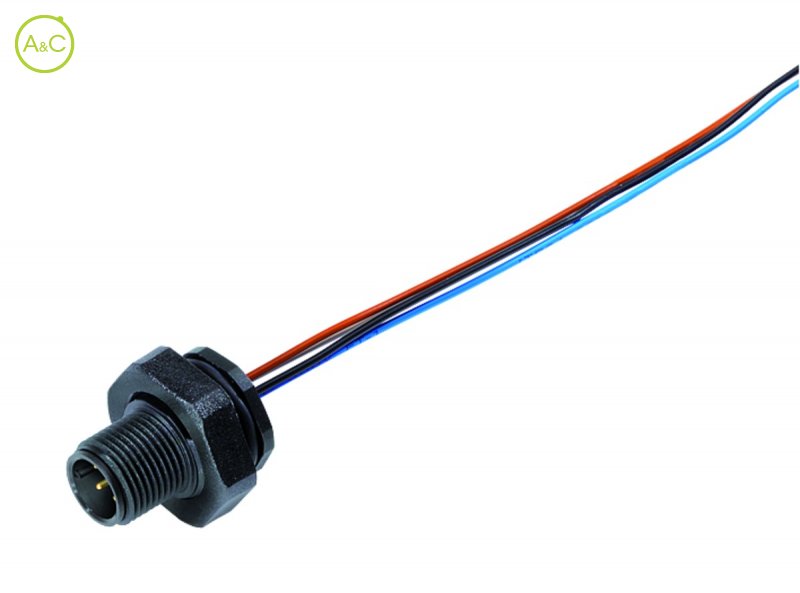

Male panel mount connector

  • Front fastened, with single wires
  • AWG 24, M16 x 1,5

Number Of Poles

  • 4
  • 5
  • 8
  • 12

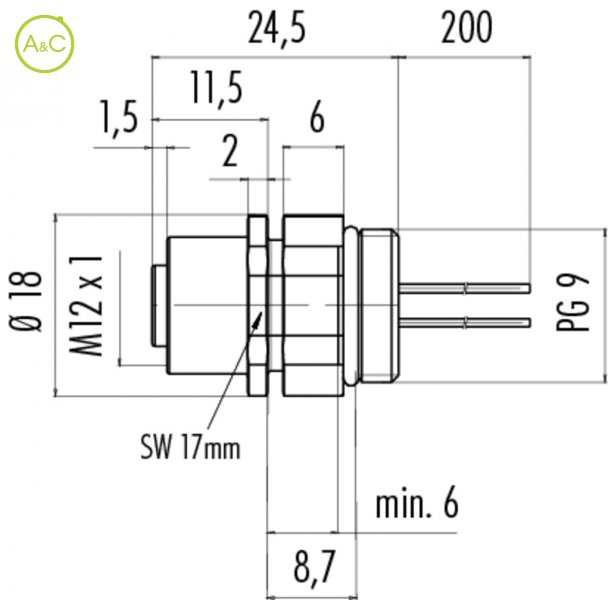

Article Number 76 4731 3011 00004 0200
Connector Diameter 21 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Strands
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 1.5 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Fixing Thread M16 x 1,5
Wire Gauge 24 AWG
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
