Binder
Number Of Poles
- 12

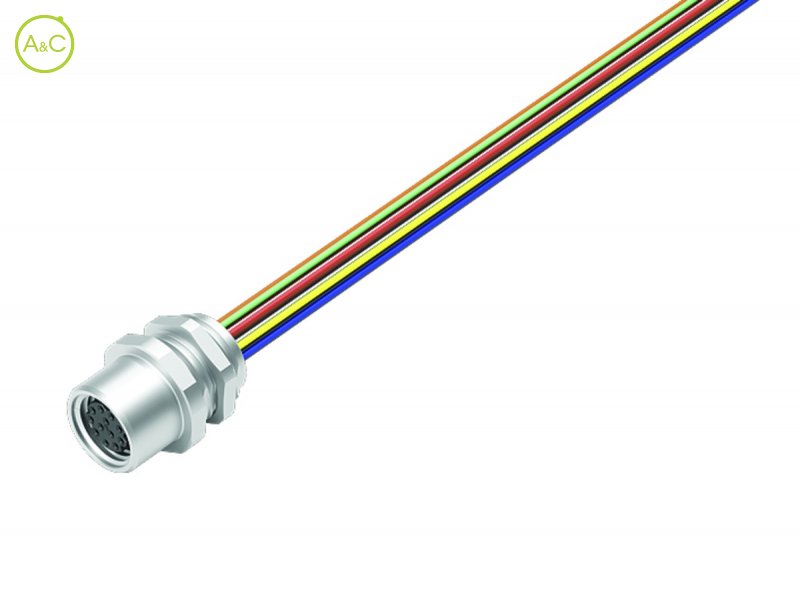

| Article Number | 76 6218 1118 00012 0200 |
| Connector Diameter | 12.6 mm |
| Number Of Contacts | 12 contacts |
| Connector Locking System | Screw (M8) |
| Termination | Single wires |
| Wire Section | 0.09 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 30 |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 2 |
| Overvoltage Categorie | II |
| Material Group | I |
| Rated Current (40°) | 1 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Housing | Zinc die-cast nickel plated |
| Wire Gauge | 28 AWG |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
