Binder
Number Of Poles
- 3+PE
| Article Number | 77 0689 0000 50704 0200 | 77 0689 0000 50704 0500 |
| Color | Black | Black |

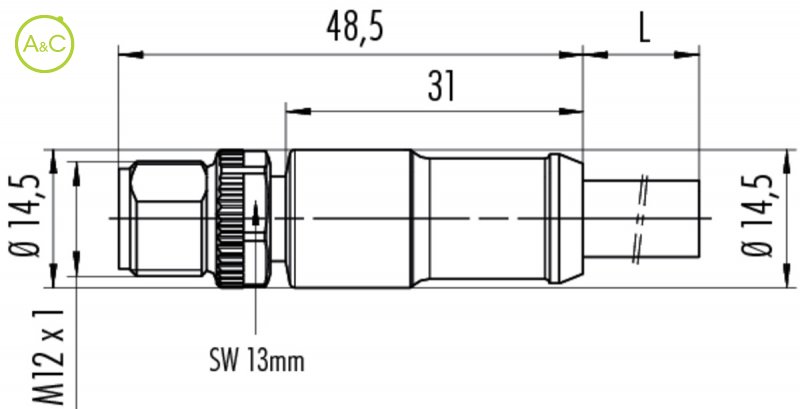

| Connector Diameter | 14.5 mm | 14.5 mm |
| Number Of Contacts | 3+PE contacts | 3+PE contacts |
| Connector Locking System | Screw(M12-S) | Screw(M12-S) |
| Termination | Removable screw | Removable screw |
| Wire Section | 1.5 mm² | 1.5 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >50 times | >50 times |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 630 | 630 |
| Rated Impuls Voltage | 6000 V | 6000 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | III | III |
| Material Group | III | III |
| Rated Current (40°) | 12 A | 12 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA |
| Wire Gauge | 16 AWG | 16 AWG |
| Material Housing Of Cable | PUR | PUR |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
