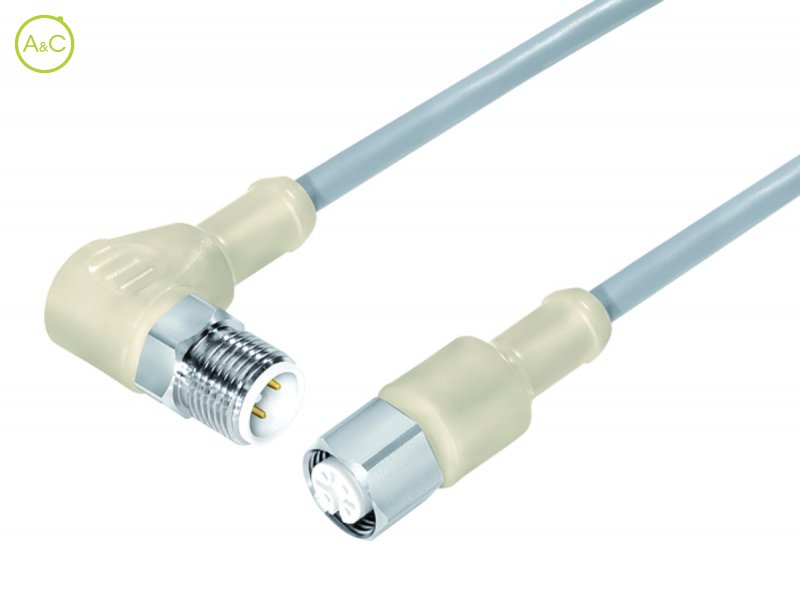

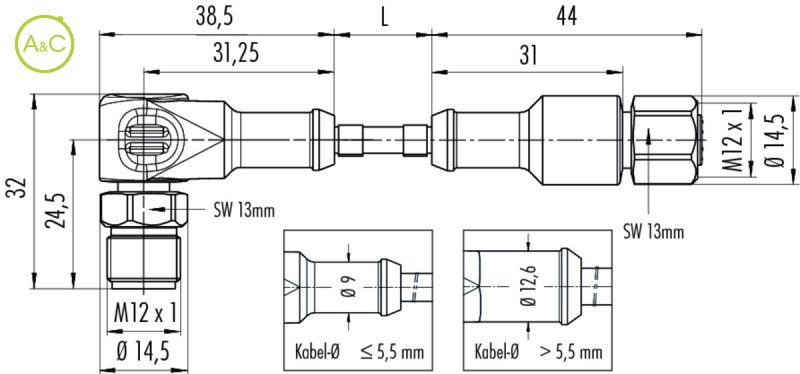

Connecting cable, Male angled connector M12x1 - Female cable connector M12x1
Meer info over dit merk:
Binder
Binder
Number Of Poles
- 3
- 4
- 5
- 8
- 12
| Article Number | 77 3730 3727 40403 0200 | 77 3730 3727 40403 0500 |
| Color | Grey | Grey |
| Connector Diameter | 14.5 mm | 14.5 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Screw (M12-A) | Screw (M12-A) |
| Termination | moulded on cable | moulded on cable |
| Wire Section | 0.34 mm² | 0.34 mm² |
| Protection Degree | IP69K, IP67 | IP69K, IP67 |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +105 °C | +105 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | II | II |
| Rated Current (40°) | 4 A | 4 A |
| Material Of Contact | Cuzn (Brass), Cusn (Bronze) | Cuzn (Brass), Cusn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PP | PP |
| Material Of Housing | PP | PP |
| Insulation Single Lead | PVC | PVC |
| Single Lead Structure | 42x0,1 | 42x0,1 |
| Conductor Resistance | 57 Ω/km | 57 Ω/km |
| Bending Radius Cable Fixed | Min. 5xD | Min. 5xD |
| Bending Radius Cable Movable | min. 10xD | min. 10xD |
| Cable Diameter | 4,5 mm | 4,5 mm |
| Wire Gauge | 22 AWG | 22 AWG |
| Product sheet | / | / |
Eigenschappen verschillen tussen varianten en subvarianten
