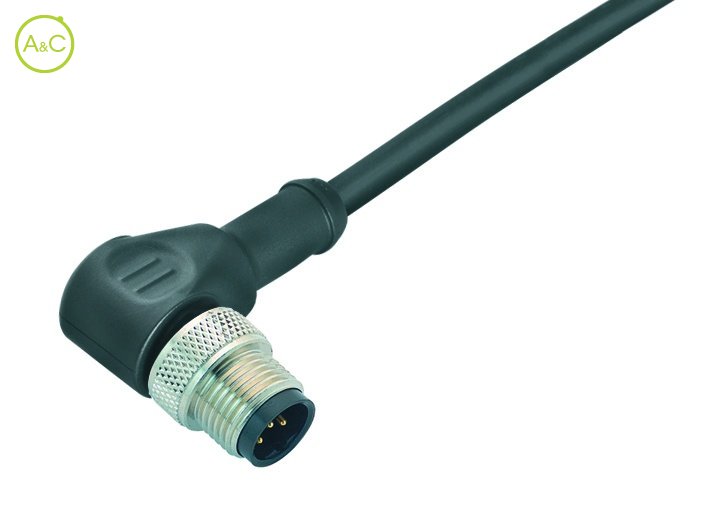

Male angled connector

  • Moulded

Number Of Poles

  • 3
  • 4
  • 5
Article Number 77 4427 0000 50003 0200 77 4427 0000 50003 0500
Old Article Number 79 4347 20 05 79 4347 50 05

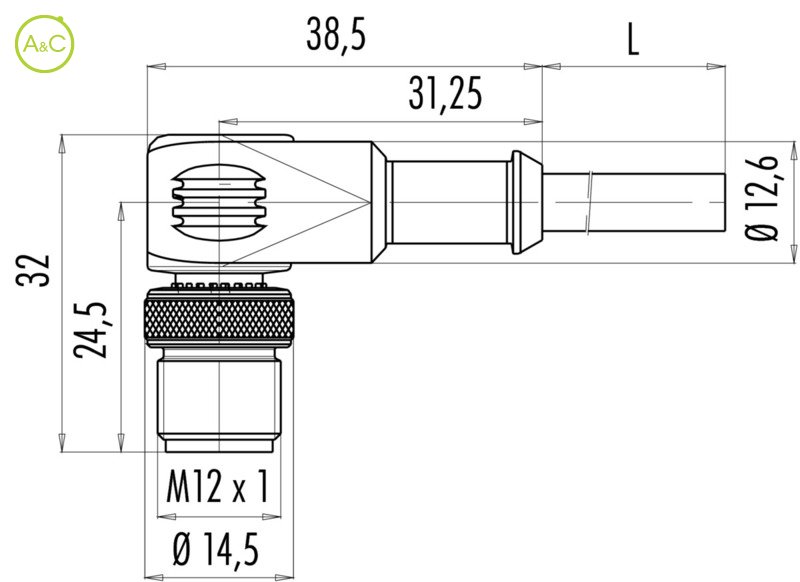

Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M12-B) Screw (M12-B)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.5 mm² 0.5 mm²
Protection Degree IP68 IP68
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 5 mm 5 mm
Cable 3 x 0,5 PUR mm² 3 x 0,5 PUR mm²
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
