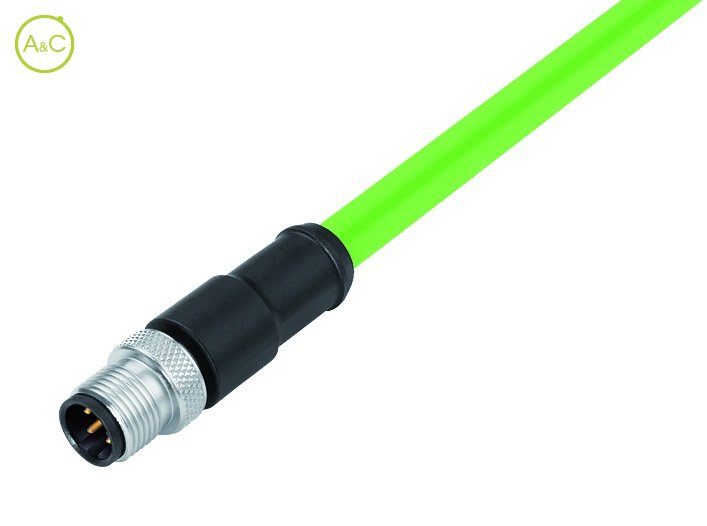

Male cable connector

  • PROFINET
  • UL-approval

Number Of Poles

  • 4
Article Number 77 4529 0000 50704 0200 77 4529 0000 50704 0500 77 4529 0000 50704 1000

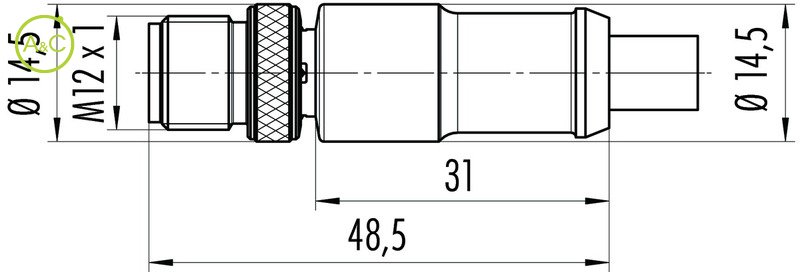

Connector Diameter 14.5 mm 14.5 mm 14.5 mm
Number Of Contacts 4 contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-D) Screw (M12-D) Screw (M12-D)
Termination Crimp, moulded Crimp, moulded Crimp, moulded
Wire Section 0.25 mm² 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67 IP67
Mating Cycles >500 times >500 times >500 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 250 250 250
Rated Impuls Voltage 2500 V 2500 V 2500 V
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PUR PUR PUR
Material Of Housing PUR PUR PUR
Cable Diameter 6,7 mm 6,7 mm 6,7 mm
Product sheet Download product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
