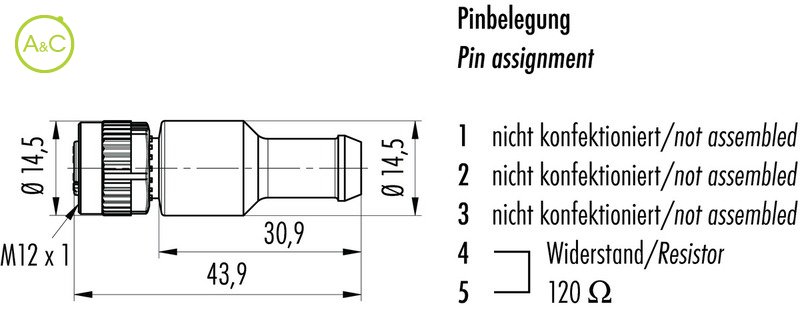

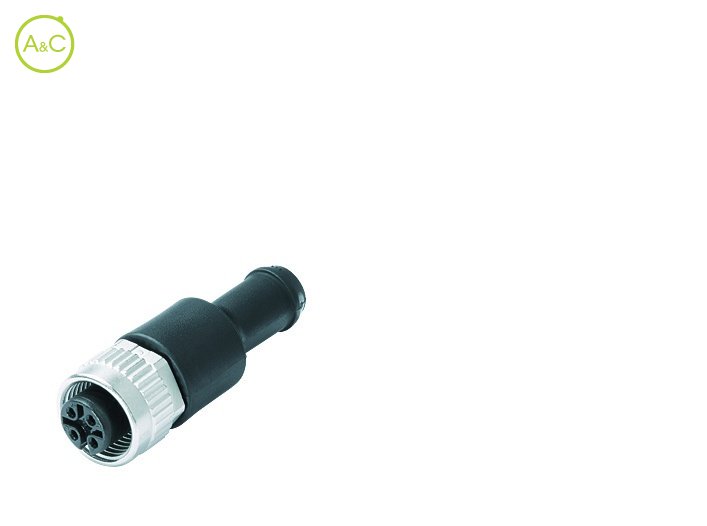

Female terminating connector

  • CAN-bus

Number Of Poles

  • 5
Article Number 77 9840 0000 00005
Connector Diameter 14.5 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-A)
Termination Crimp, moulded
Wire Section 0,1 to 0,75 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PUR
Material Of Housing PUR
Cable Diameter 7,2 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
