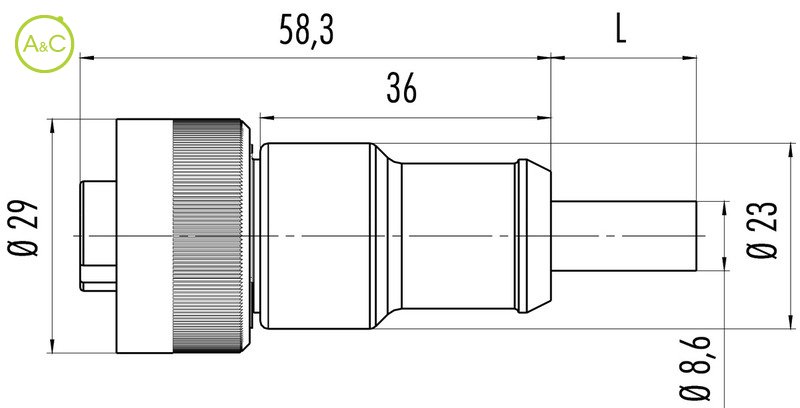

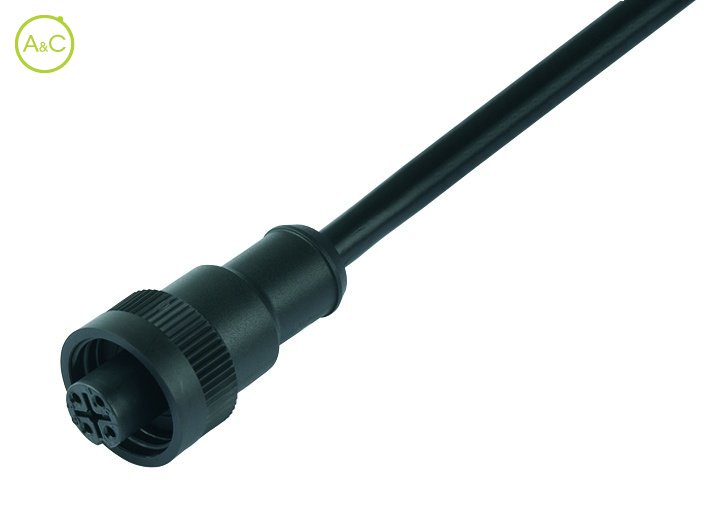

Female cable connector

79-0232-20-04

79-0232-20-04

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

3+PE
6+PE

Article Number	79 0232 20 04
Connector Diameter	29 mm
Number Of Contacts	3+PE contacts
Connector Locking System	Screw (RD24)
Termination	Crimp, moulded
Wire Section	4 x 1,5 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Rated Voltage	400
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	16 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PA 12
Material Of Housing	PUR
Cable Diameter	8,6 mm
Product sheet	Download product sheet

Article Number	79 0236 20 07
Connector Diameter	29 mm
Number Of Contacts	6+PE contacts
Connector Locking System	Screw (RD24)
Termination	Crimp, moulded
Wire Section	7 x 0,75 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	8 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PA 12
Material Of Housing	PUR
Cable Diameter	9,7 mm
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
