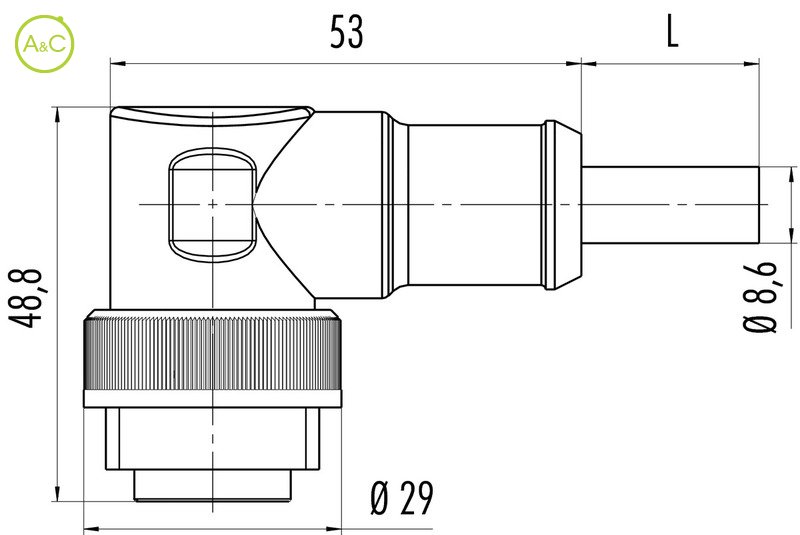

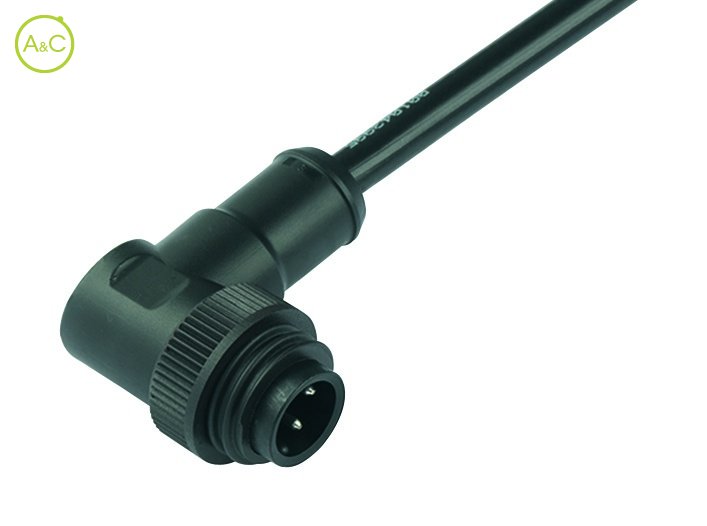

Male angled connector

Number Of Poles

  • 3+PE
  • 6+PE
Article Number 79 0233 20 04
Connector Diameter 29 mm
Number Of Contacts 3+PE contacts
Connector Locking System Screw (RD24)
Termination Crimp, moulded
Wire Section 4 x 1,5 mm²
Cable Length 2 mm
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +80 °C
Lower Temperature -25 °C
Rated Voltage 400
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 16 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Plating Ag (Silver)
Material Of Insert PA 12
Material Of Housing PUR
Cable Diameter 8,6 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
