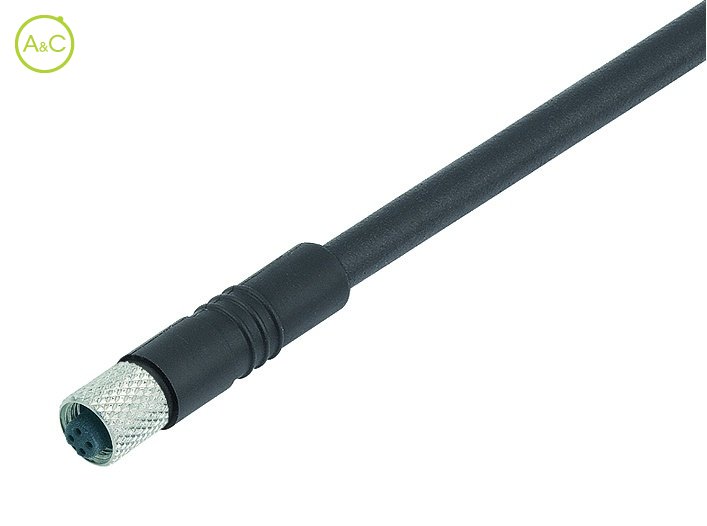

Female cable connector

  • Moulded, M5 x 0,5

Number Of Poles

  • 3
  • 4
Article Number 79 3102 52 03 79 3102 32 03

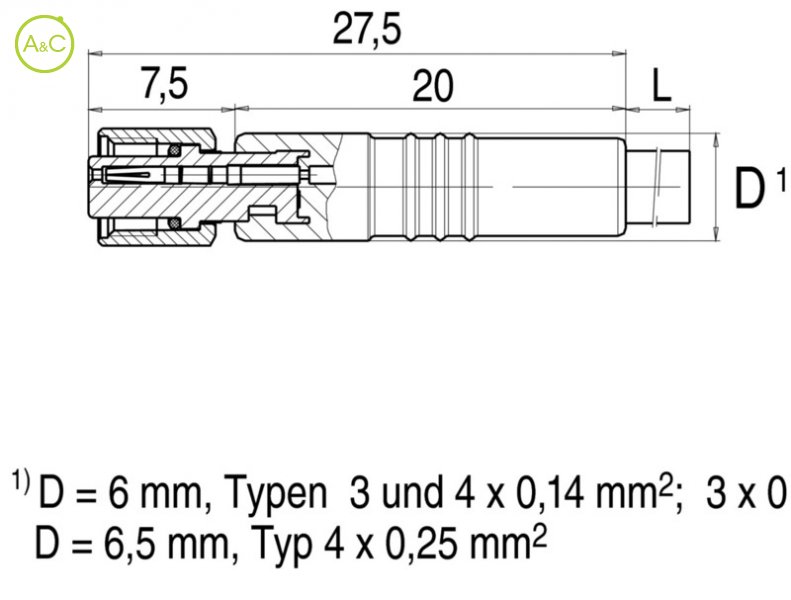

Connector Diameter 6.5 mm 6.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M5) Screw (M5)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.14 mm² 0.25 mm²
Cable Length 2 mm 2 mm
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +80 °C +80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group I I
Rated Current (40°) 1 A 1 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 3,1 mm 3,7 mm
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
