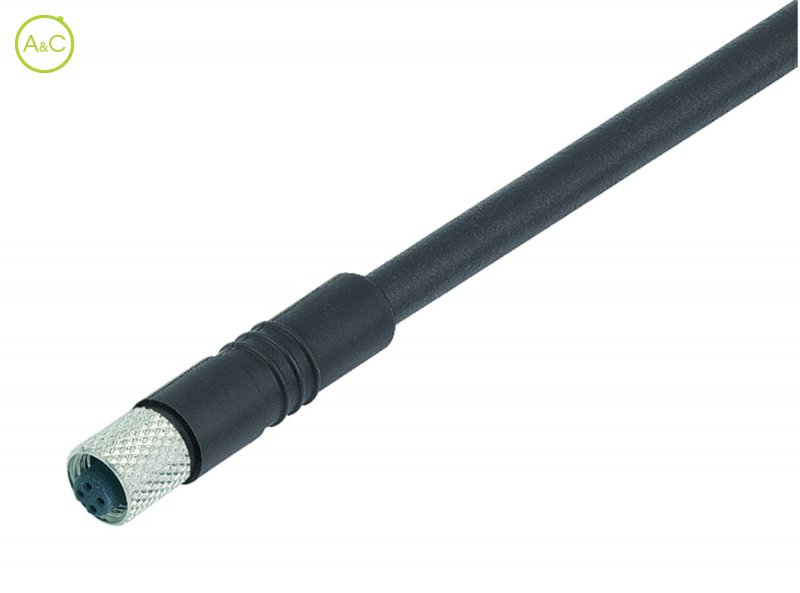

Female cable connector

  • Moulded M5x0,5, shielded

Number Of Poles

  • 3
  • 4
Article Number 79 3122 52 03 79 3122 525 03
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M5) Screw (M5)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.14 mm² 0.14 mm²
Protection Degree IP67 IP67
Upper Temperature +80 °C +80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group I I
Rated Current (40°) 1 A 1 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Insulation Single Lead PVC PVC
Single Lead Structure 18x0,1 18x0,1
Cable Sheath Ø 3.1 mm 3.1 mm
Conductor Resistance 148 Ω/km 148 Ω/km
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
