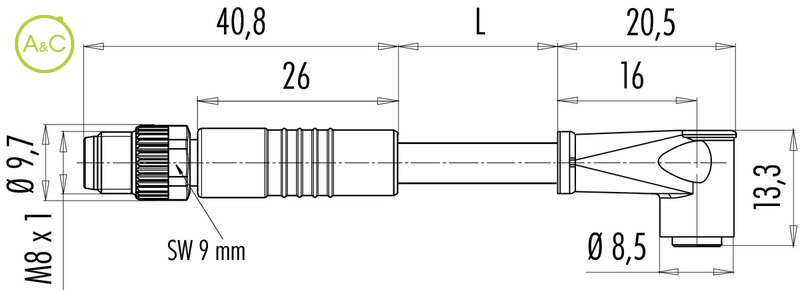

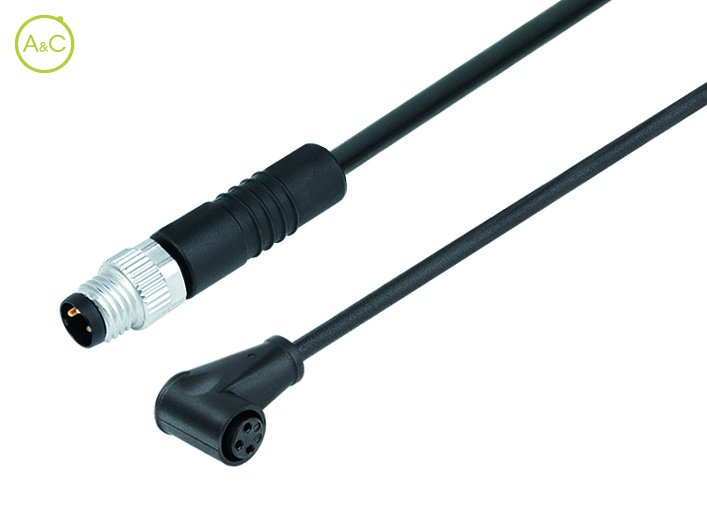

Male cable connector M8x1 - Female angled connector snap-in version M8x1

Number Of Poles

  • 3
  • 4
Article Number 79 5062 10 03 79 5062 20 03
Connector Diameter 9,7 - 8,5 mm 9,7 - 8,5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Snap-in Snap-in
Termination Crimp, moulded Crimp, moulded
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP65 IP65
Mating Cycles >50 times >50 times
Upper Temperature +70 °C +70 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact Pin CuZn (Brass), Socket (Bronze) Pin CuZn (Brass), Socket (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 4,5 mm 4,5 mm
Cable 3x0,25 PUR mm² 3x0,25 PUR mm²
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
