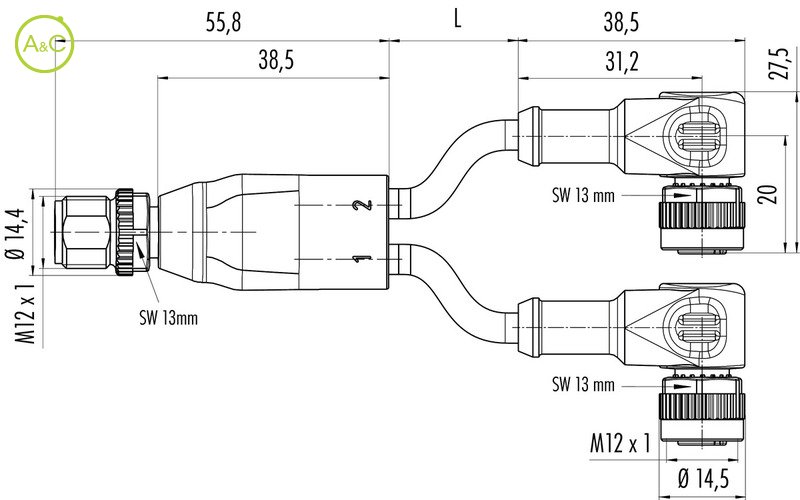

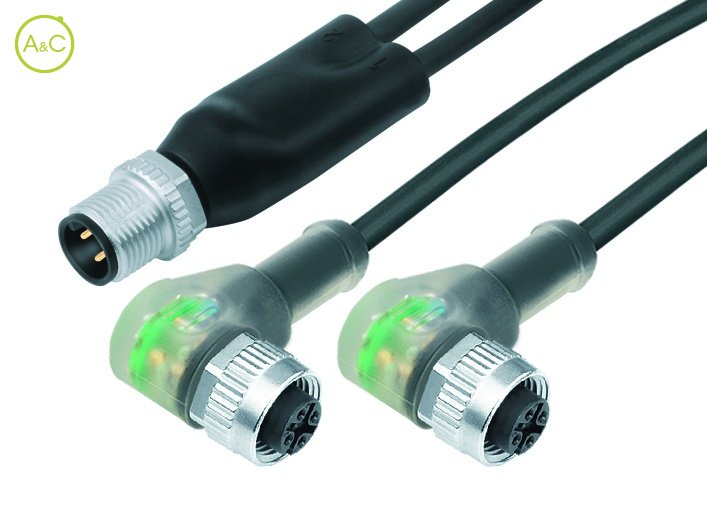

Duo male connector M12x1 - 2 female angled connectors with LED PNP NOC M12x1

Number Of Poles

  • 4/3
Article Number 79 5202 10 04 79 5202 20 04
Connector Diameter 14,4 - 14,5 mm 14,4 - 14,5 mm
Number Of Contacts 4/3 contacts 4/3 contacts
Connector Locking System Screw Screw
Termination Crimp, moulded Crimp, moulded
Wire Section 0.34 mm² 0.34 mm²
Protection Degree IP68 IP68
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 30 30
Rated Impuls Voltage 500 V 500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact Pin CuZn (Brass), Socket (Bronze) Pin CuZn (Brass), Socket (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 4,5 mm 4,5 mm
Cable 3x0,34 PUR mm² 3x0,34 PUR mm²
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
