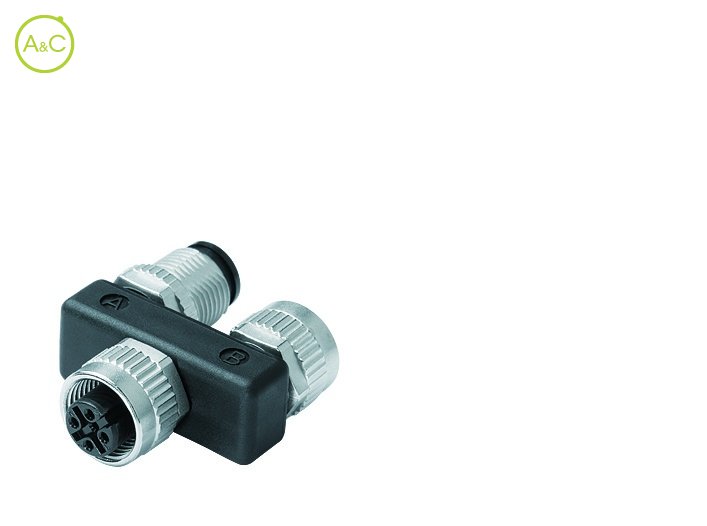

Twin distributor

  • Female connector M12x1 - male / 2 female connectors M12x1
  • 1:1 wiring

Number Of Poles

  • 5
Article Number 79 5212 00 05

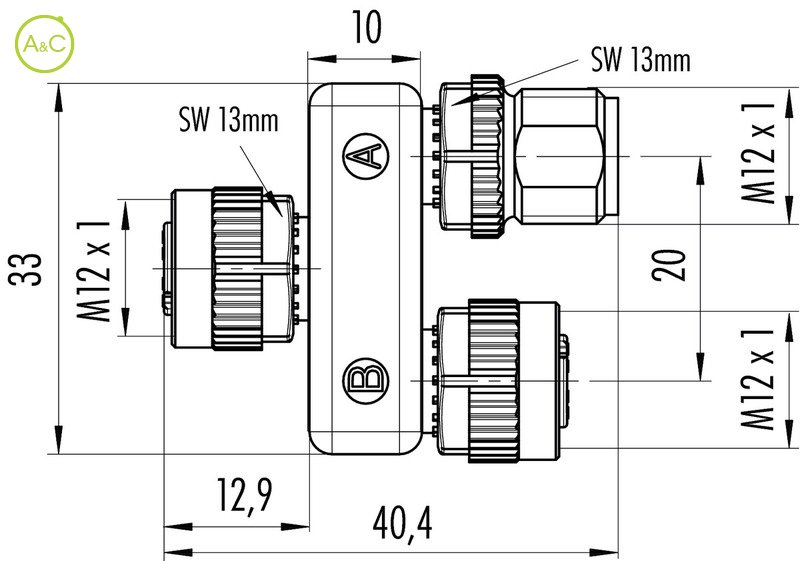

Connector Diameter 33 mm
Number Of Contacts 5 contacts
Connector Locking System Screw
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact Pin CuZn (Brass), Socket (Bronze)
Plating Au (Gold)
Material Of Insert PUR
Material Of Housing PUR
Product sheet Download product sheet
