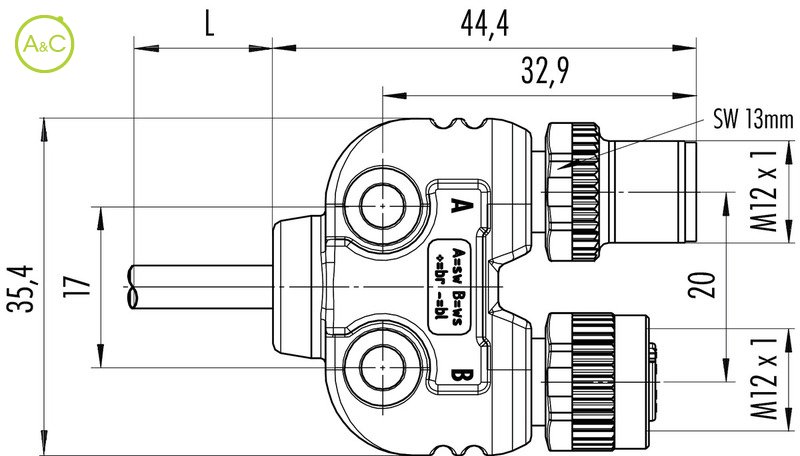

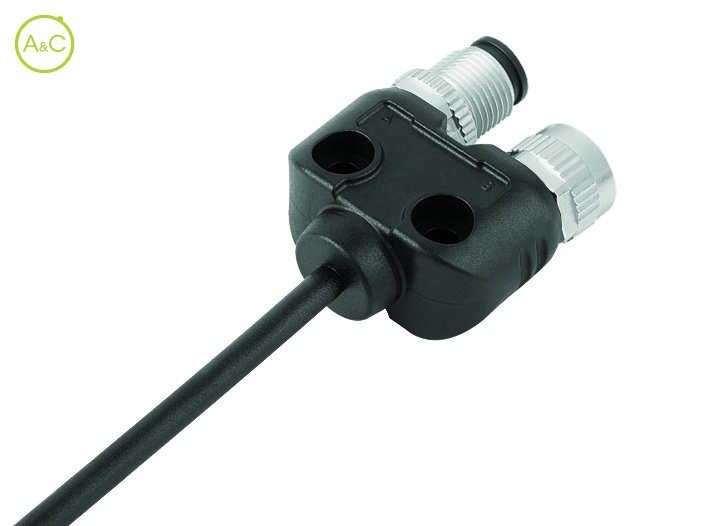

Twin distributor

  • Moulded Male connector M12x1 - Female connector M12x1

Number Of Poles

  • 4
Article Number 79 5238 10 04
Connector Diameter 35.4 mm
Number Of Contacts 4 contacts
Connector Locking System Screw
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact Pin CuZn (Brass), Socket (Bronze)
Plating Au (Gold)
Material Of Insert PUR
Material Of Housing PUR
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
