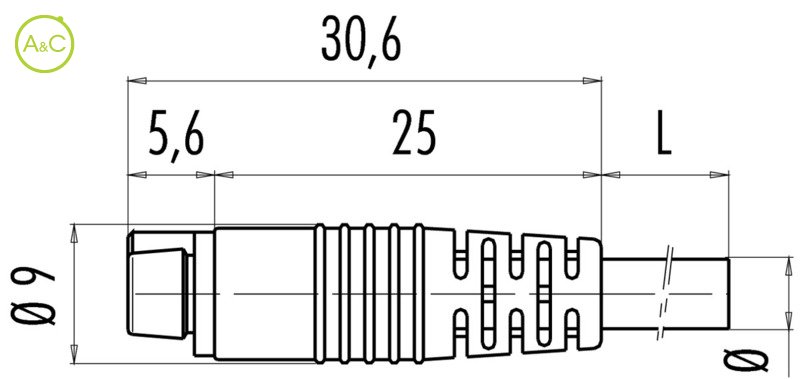

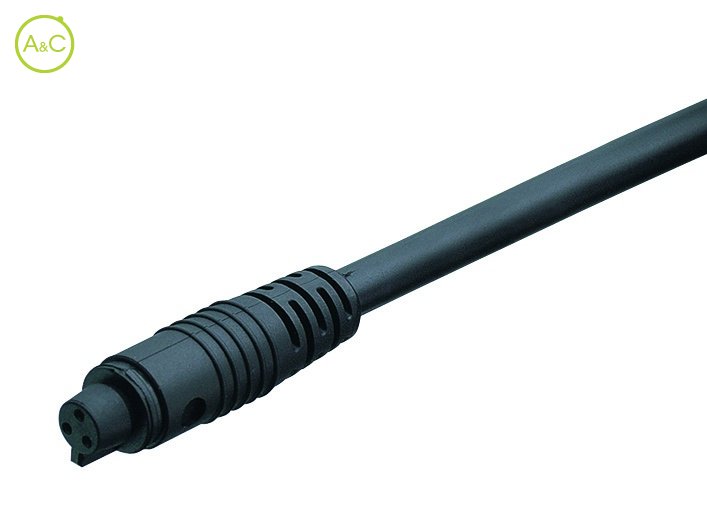

Female cable connector

  • With moulded cable

Number Of Poles

  • 3
  • 4
  • 5
Article Number 79 9002 12 03 79 9002 15 03
Connector Diameter 9 mm 9 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Snap-in Snap-in
Termination Moulded Moulded
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP40 IP40
Mating Cycles >100 times >100 times
Upper Temperature +70 °C +70 °C
Lower Temperature -20 °C -20 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 1 1
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 3 A 3 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing PUR PUR
Cable Diameter 4.5 mm 4.5 mm
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
