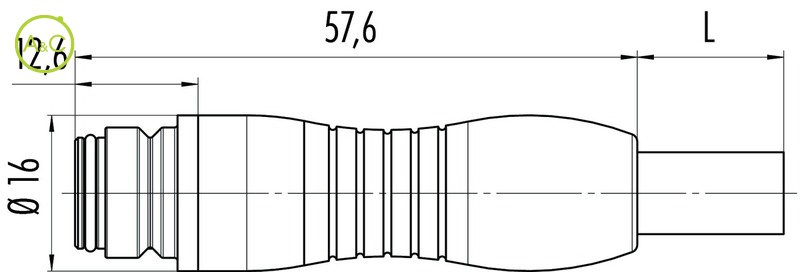

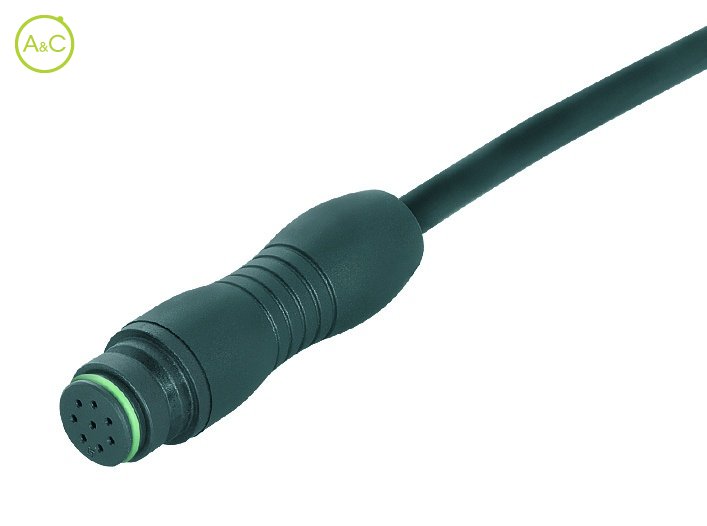

Female cable connector

Number Of Poles

  • 3
  • 5
  • 8
  • 12
Article Number 79 9150 020 03
Connector Diameter 16 mm
Number Of Contacts 3 contacts
Connector Locking System Snap-in
Termination Moulded
Wire Section 0.75 mm²
Cable Length 2 mm
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +70 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 7 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing PUR
Cable Diameter 6,9 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
